KINO-9453 Mini-ITX Motherboard
Page 38

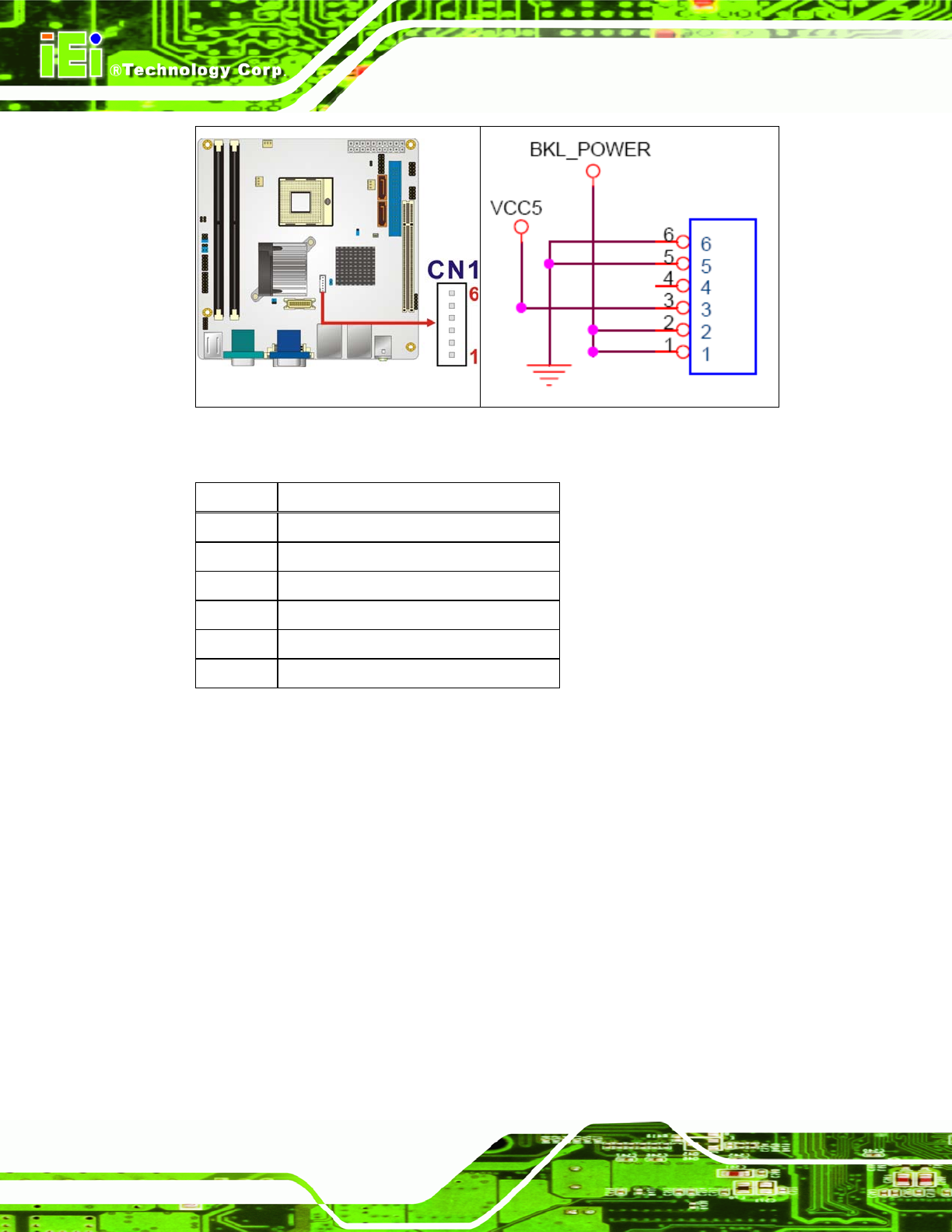

Figure 4-6: LCD Backlight Connector Location
PIN NO. DESCRIPTION
1 Back Light Power
2 Back Light Power
3 Back Light enable
4 NC
5 GND
6 GND
Table 4-7: LCD Backlight Connector Pinouts
4.2.6 LVDS LCD connector
CN Label: LVDS1
CN Type:
30-pin connector (2x15)
CN Location: See
Figure 4-7
CN Pinouts: See
Table 4-8
The connector supports one or two channel (18-bit or 24-bit) LVDS panel.
