KINO-9453 Mini-ITX Motherboard
Page 36
One primary 40-pin IDE device connector on the KINO-9453 motherboard supports
connectivity to ATA 100 IDE devices with data transfer rates up to 100 MB/s.

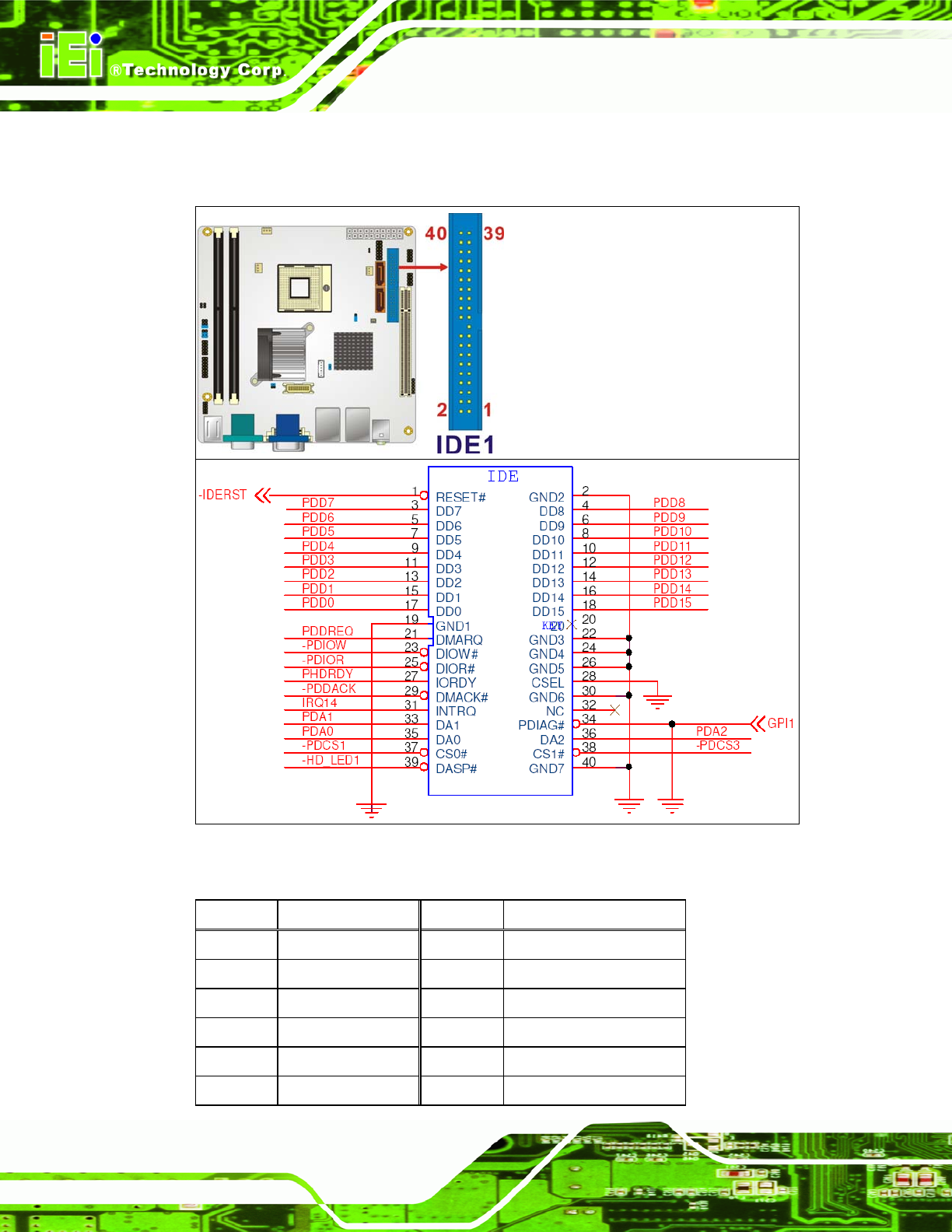

Figure 4-5: IDE Device Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
