KINO-9453 Mini-ITX Motherboard
Page 35
CN Location: See Figure 4-4
CN Pinouts: See
Table 4-5
The DIO connector is managed through a Super I/O chip. The DIO connector pins are
user programmable. The digital IO port of KINO-9453 is 5 V CMOS level.

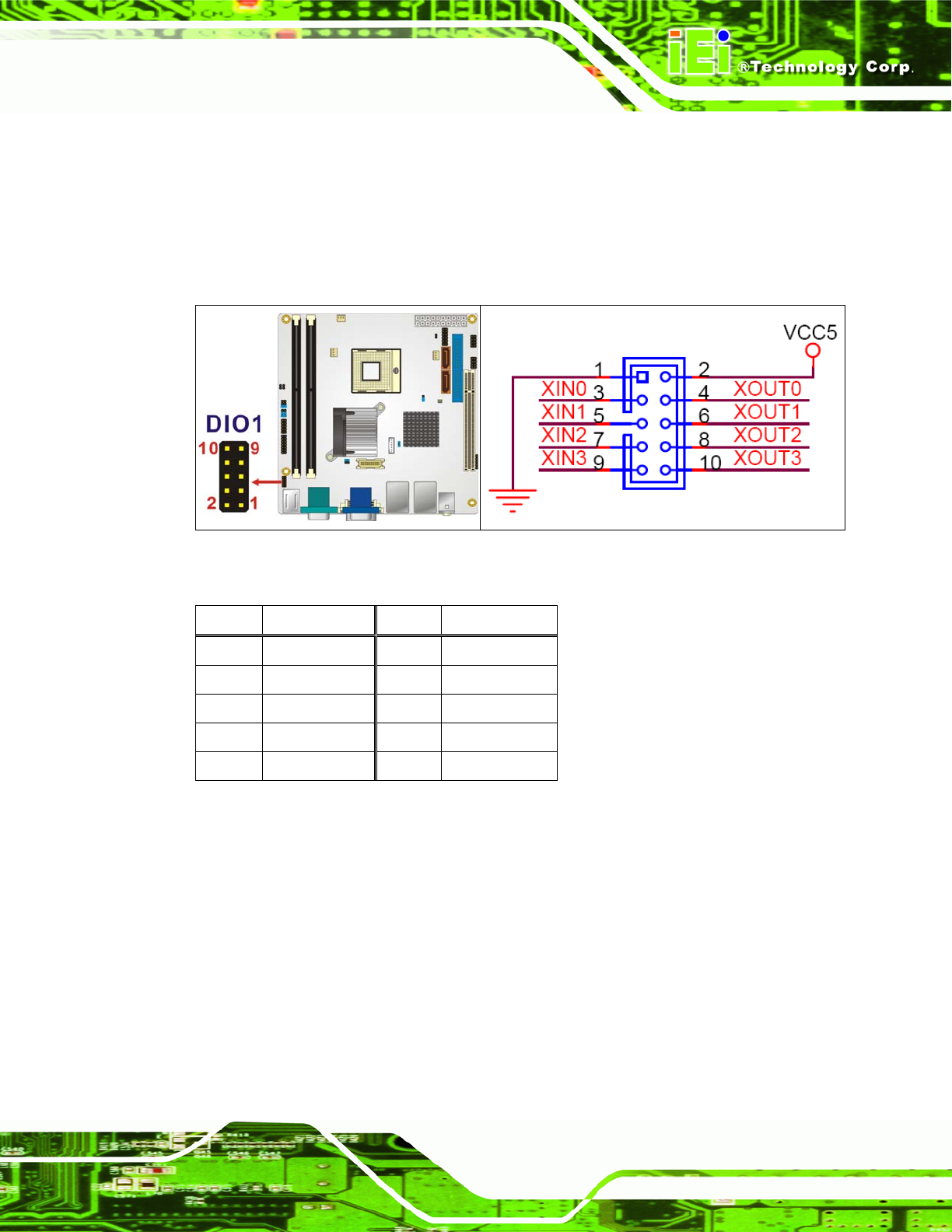

Figure 4-4: GPIO Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 +5V
3 INPUT0 4 OUTPUT0
5 INPUT1 6 OUTPUT1
7 INPUT2 8 OUTPUT2
9 INPUT3 10 OUTPUT3
Table 4-5: GPIO Connector Pinouts
4.2.4 IDE Connector
CN Label: IDE1
CN Type:
40-pin header (2x20)
CN Location: See
Figure 4-5
CN Pinouts: See
Table 4-6
