KINO-9453 Mini-ITX Motherboard
Page 14
The Intel
®
945GME Northbridge chipset on the KINO-9453 supports two DDR2 240-pin
DIMMs with the following features:
Two 240-pin DIMMs
DDR2 only (DO NOT install a DDR DIMM)
Single-channel or dual-channel
Capacities of 256 MB, 512 MB, 1 GB or 2 GB
Transfer speeds of 400 MHz, 533 MHz, or 667 MHz
The memory sockets are shown in
Figure 2-4.

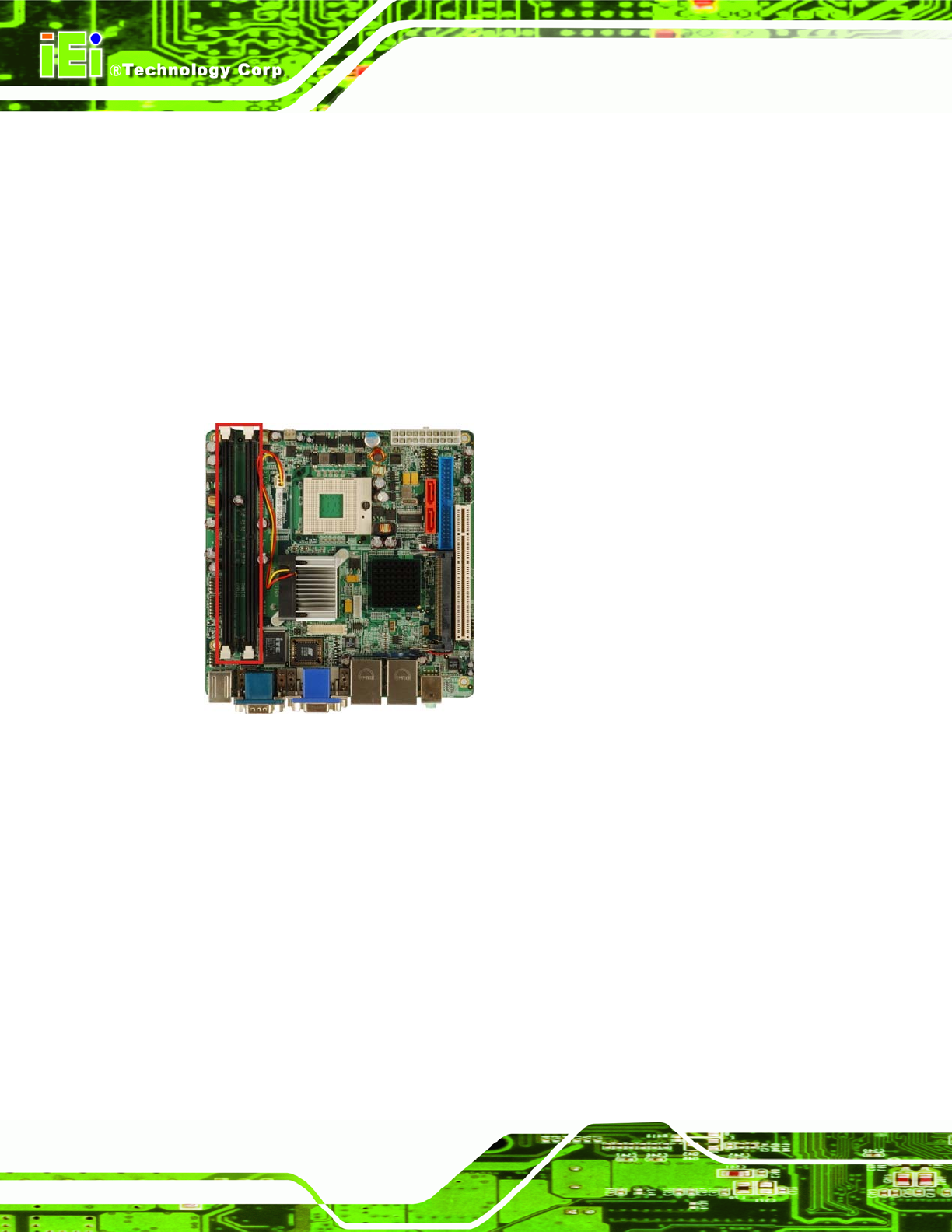

Figure 2-4: 240-pin DIMM Sockets
2.5.3 Intel
®
945GME Integrated Graphics
The Intel
®
945GME Northbridge chipset has an Intel
®
Gen. 3.5 integrated graphics engine
that supports the following display devices:
Analog CRT
LVDS
S-DVO interface (DVI connector)
