KINO-9453 Mini-ITX Motherboard
Page 4

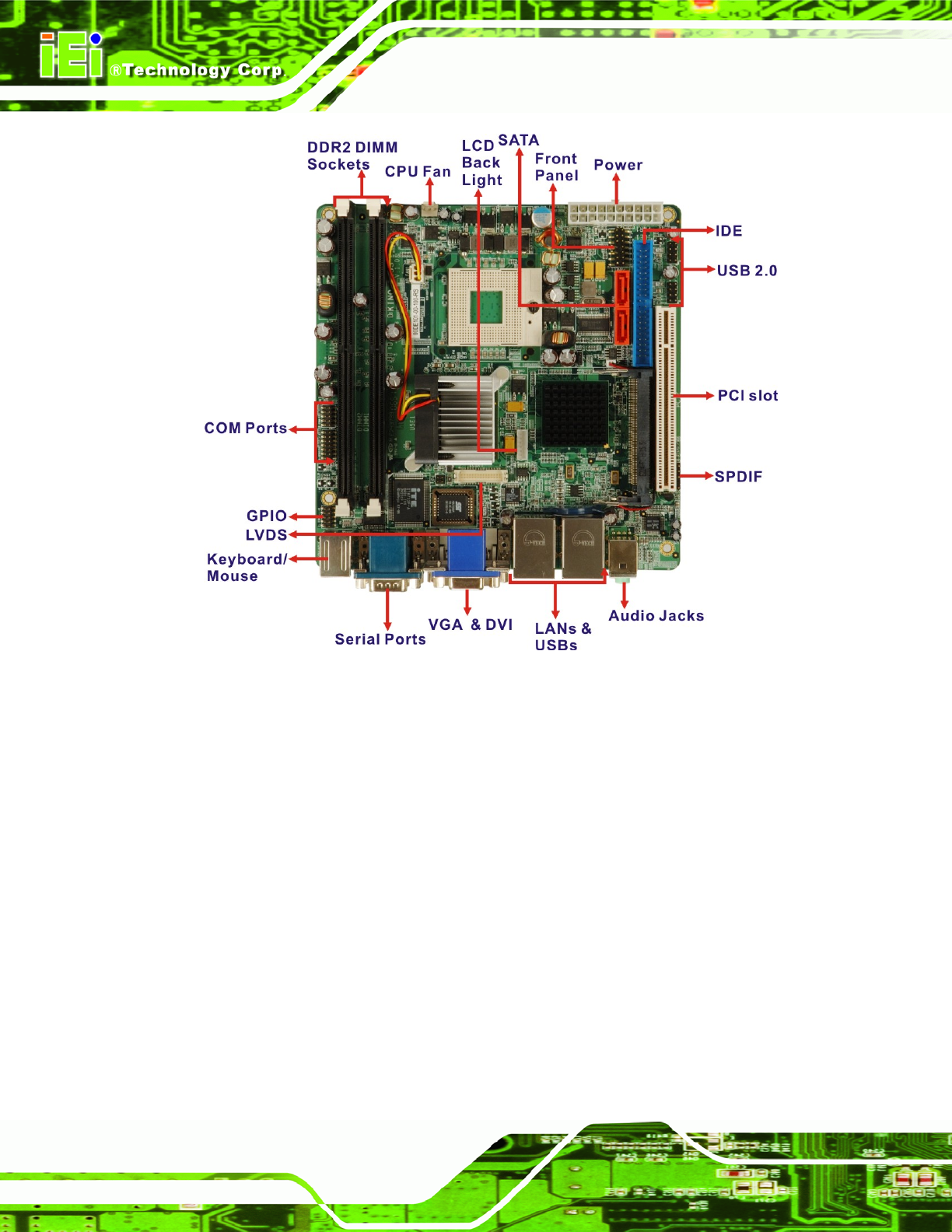

Figure 1-2: KINO-9453 Overview
1.2.2 KINO-9453 Peripheral Connectors and Jumpers
The KINO-9453 has the following connectors on-board:
2 x DDR2 DIMM sockets
1 x Digital I/O connector
3 x Fan connectors
1 x Front panel connector
1 x IDE Interface connector
1 x LCD backlight connector
1 x LVDS LCD connector
1 x PCI slot
1 x Power connector
