KINO-9453 Mini-ITX Motherboard
Page 166
Step 9: After the driver installation process is complete, a confirmation screen shown in
Figure 7-28 appears.

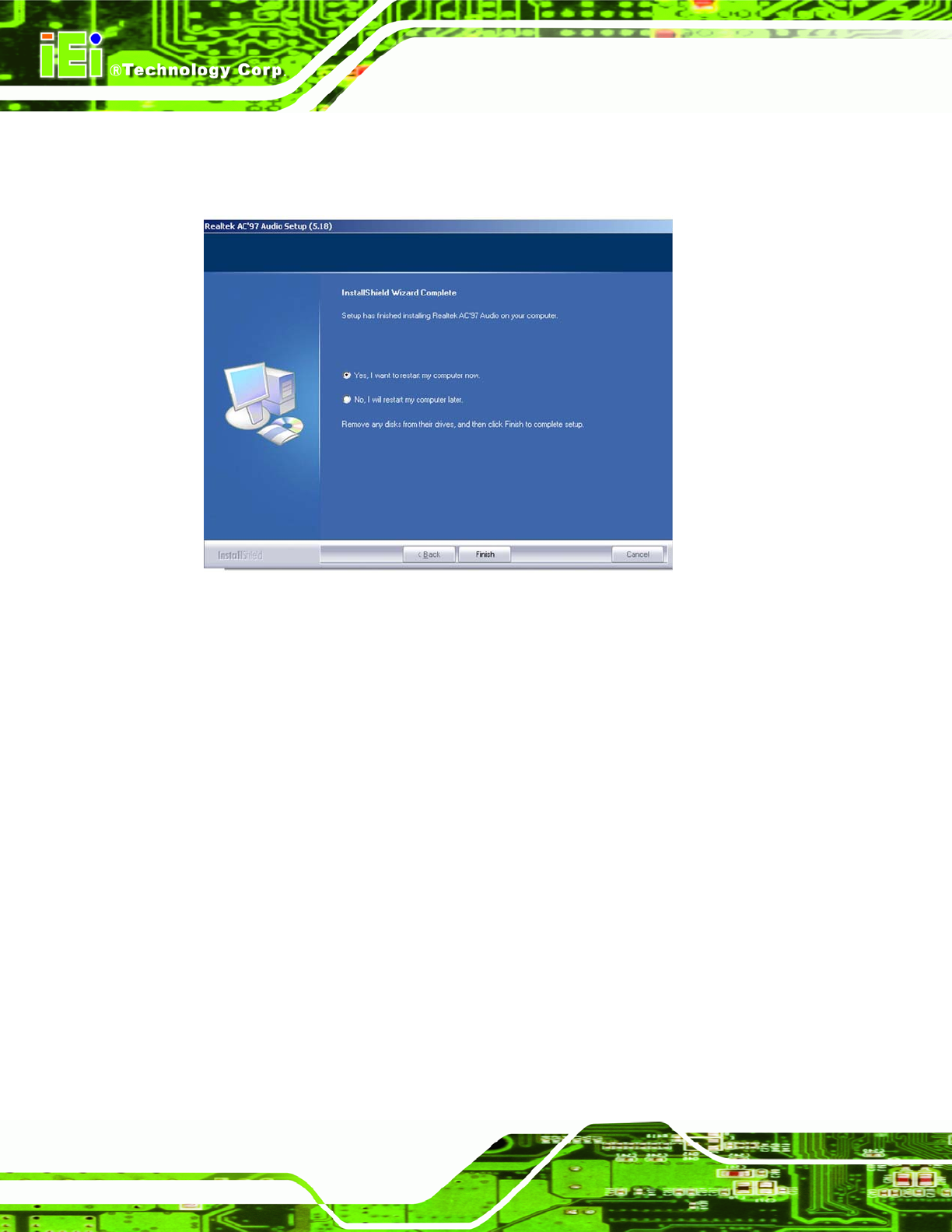

Figure 7-28: AC`97 Audio Driver Installation Complete
Step 10: The confirmation screen shown in
Figure 7-28 allows you to restart the
computer immediately after the installation is complete or to restart the computer
later. For the settings to take effect the computer must be restarted. Once you
have decided when to restart the computer, click the “F
INISH” button. Step 0:
