KINO-9453 Mini-ITX Motherboard
Page 162

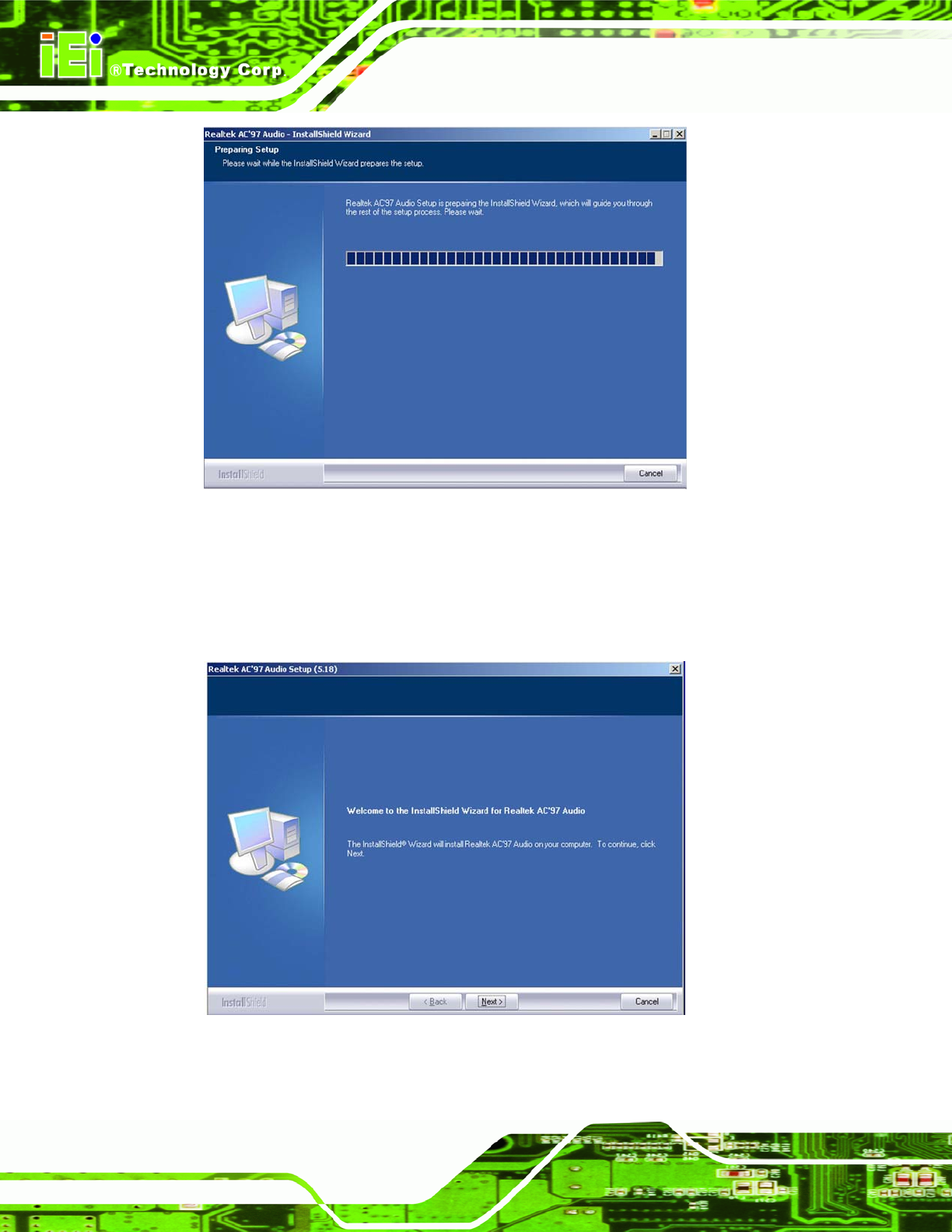

Figure 7-23: AC`97 Audio Driver Setup Preparation
Step 6: After the install shield is prepared, the welcome screen shown in
Figure 7-24
appears. To continue the installation process, click the “N
EXT” button. The install
shield starts to configure the new software as shown in
Figure 7-25.
Figure 7-24: AC`97 Audio Driver Welcome Screen
