KINO-9453 Mini-ITX Motherboard
Page 160

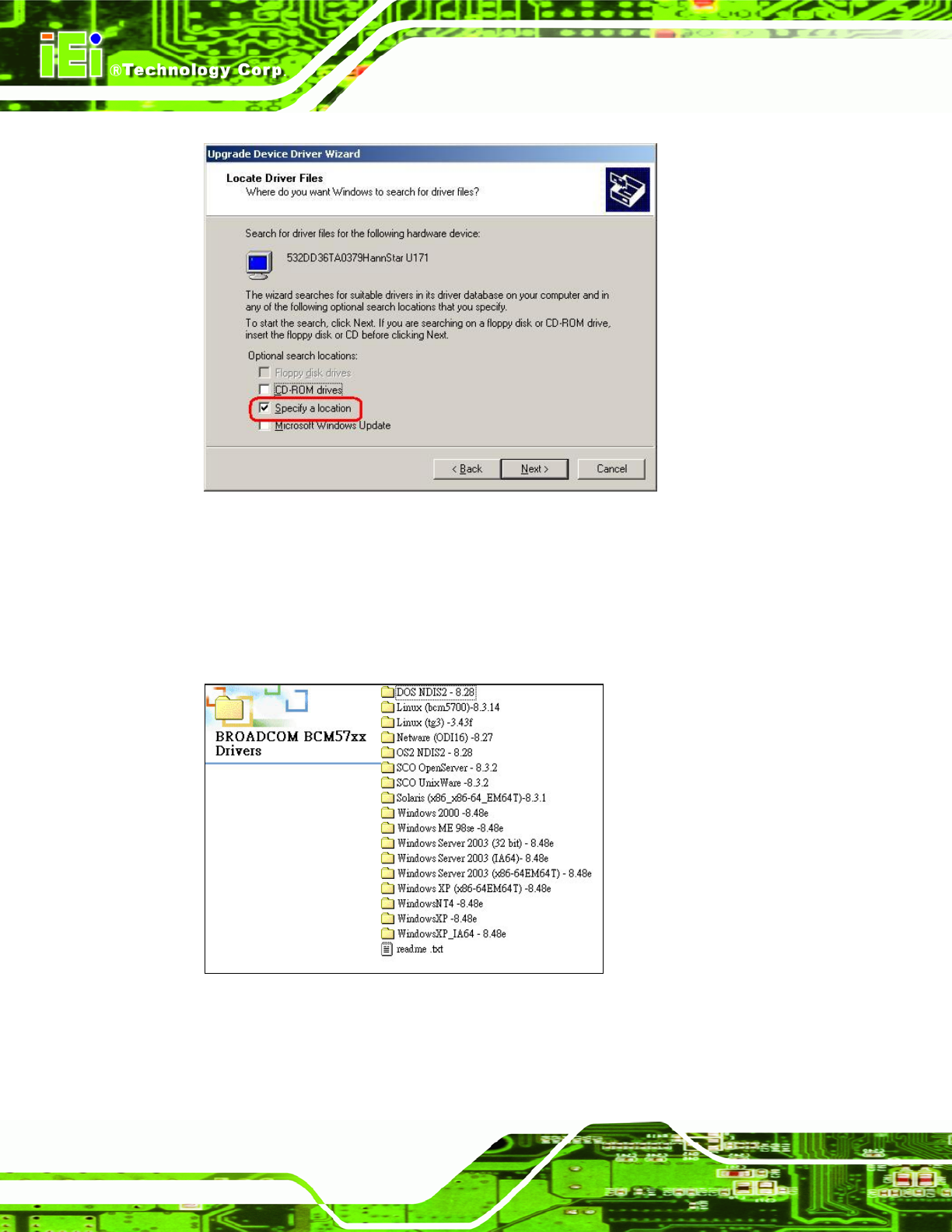

Figure 7-20: Locate Driver Files
Step 8: Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx
Drivers” directory (
Figure 7-21) in the location browsing window, where “X:\” is
the system CD drive.
Figure 7-21: Location Browsing Window
Step 9: Click OK
to continue. A driver files location menu window appears. Click NEXT to
continue. The driver is installed.Step 0:
