KINO-9453 Mini-ITX Motherboard
Page 155

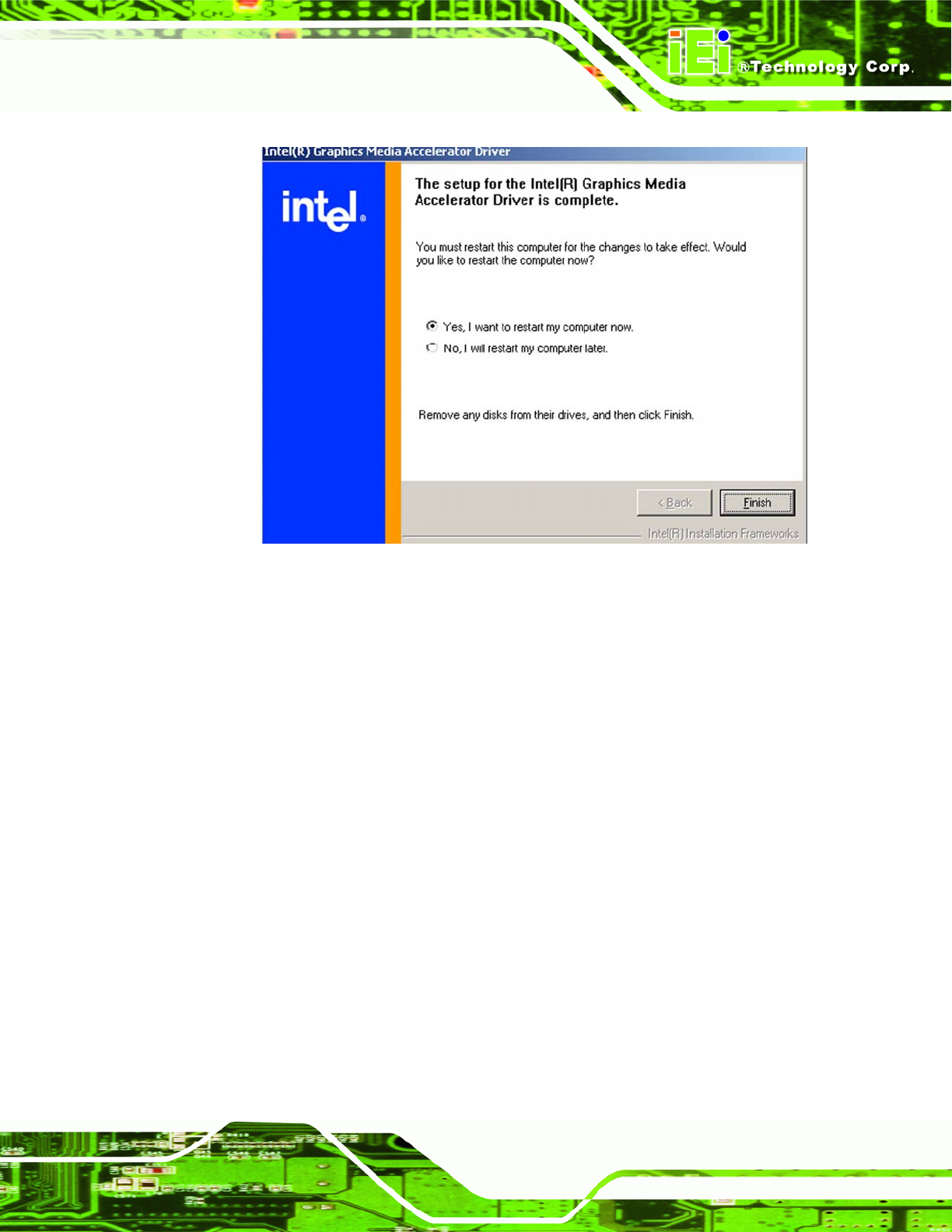

Figure 7-14: GMA Driver Installation Complete
Step 14: After selecting when to restart the computer in
Figure 7-14, click FINISH.
7.5 Broadcom LAN Driver (for GbE LAN) Installation
To install the Broadcom LAN driver, please follow the steps below.
Step 1: Open Windows Control Panel (
Figure 7-15).
