KINO-9453 Mini-ITX Motherboard
Page 144

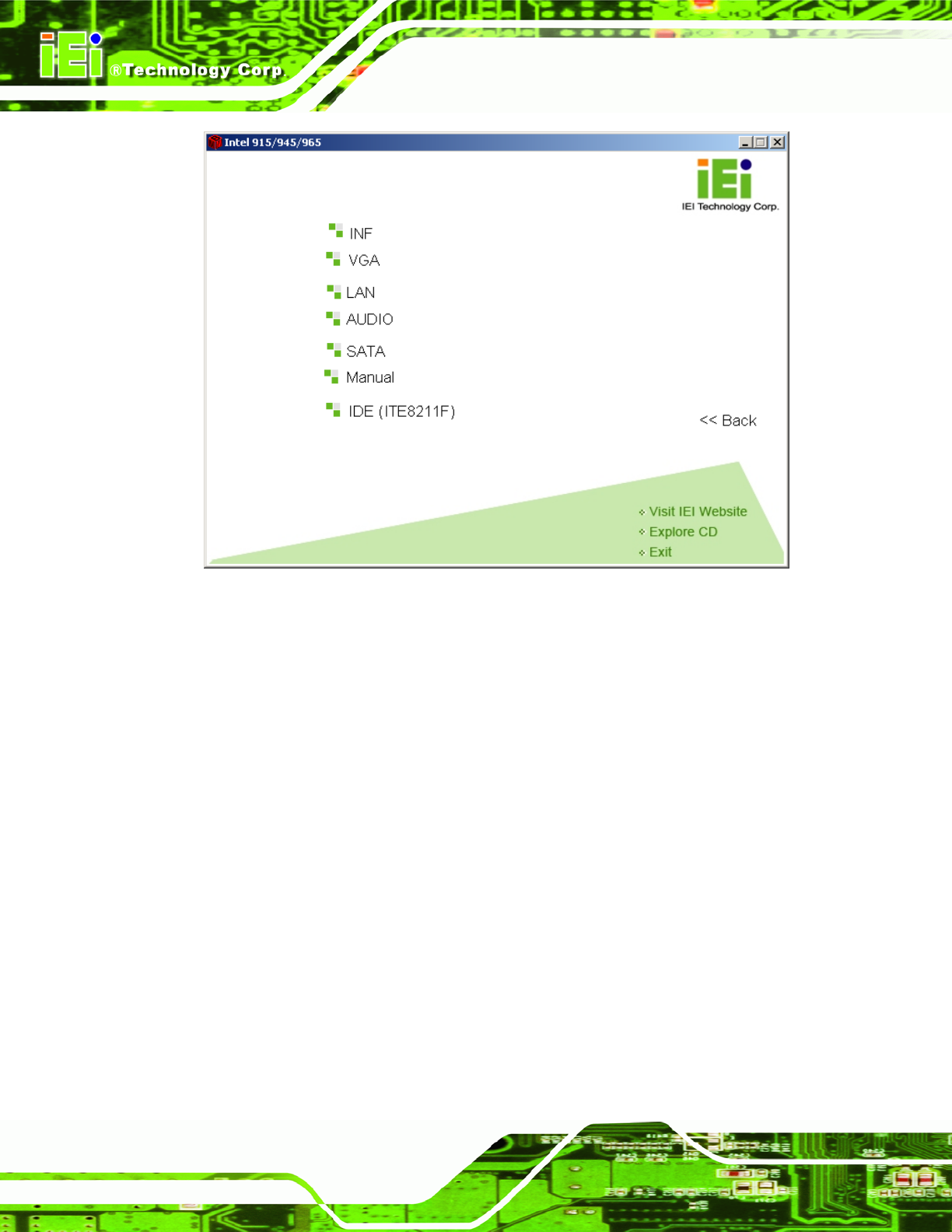

Figure 7-1: Available Drivers
Step 5: Select the driver to install from the list in
Figure 7-1.
7.3 Chipset Driver Installation
To install the chipset driver, please follow the steps below:
Step 1: Select the INF driver from the list in
Figure 7-1.
Step 2: A new window opens (
Figure 7-2).
