KINO-9453 Mini-ITX Motherboard
Page 140
and enabled
Enabled D
EFAULT
The on-board LAN2 controller is manually enabled
Disabled
The on-board LAN2 controller is manually disabled
6.8 Exit
Use the Exit menu (BIOS Menu 23) to load default BIOS values, optimal failsafe values
and to save configuration changes.

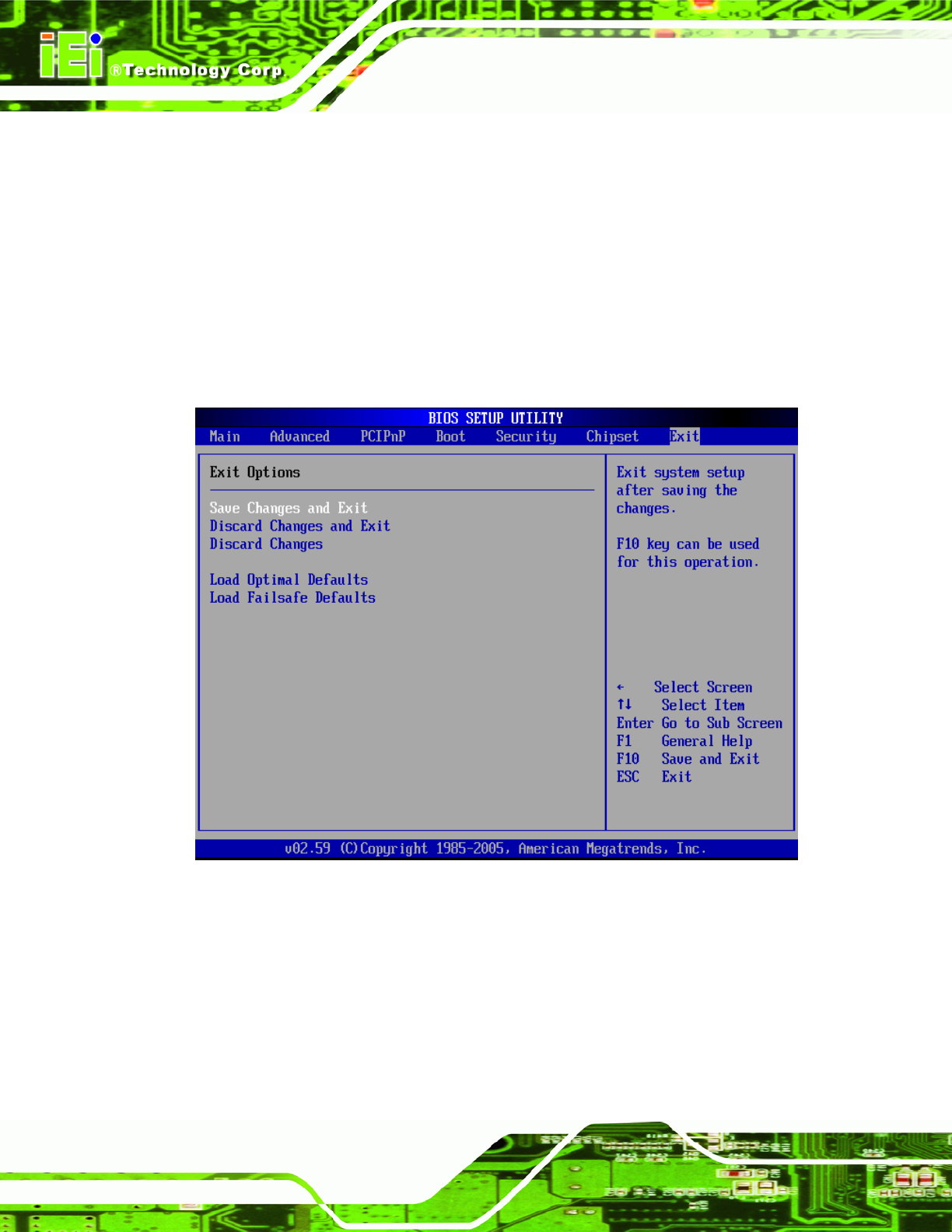

BIOS Menu 23:Exit
Save Changes and Exit
Use the Save Changes and Exit option to save the changes made to the BIOS options
and to exit the BIOS configuration setup program.
Discard Changes and Exit
