KINO-9453 Mini-ITX Motherboard
Page 138
1280x600
2048x1536 (36bits)
Local Flat Panel Scaling [Auto]
Use the Local Flat Panel Scaling option to select the method of scaling for the flat panel
screen attached to the system.
Auto DEFAULT
Scaling is automatic
Forced Scaling
Scaling is forced
Disabled
Scaling is disabled
6.7.2 SouthBridge Chipset Configuration
The SouthBridge Chipset Configuration menu (BIOS Menu 22) the Southbridge
chipset to be configured.

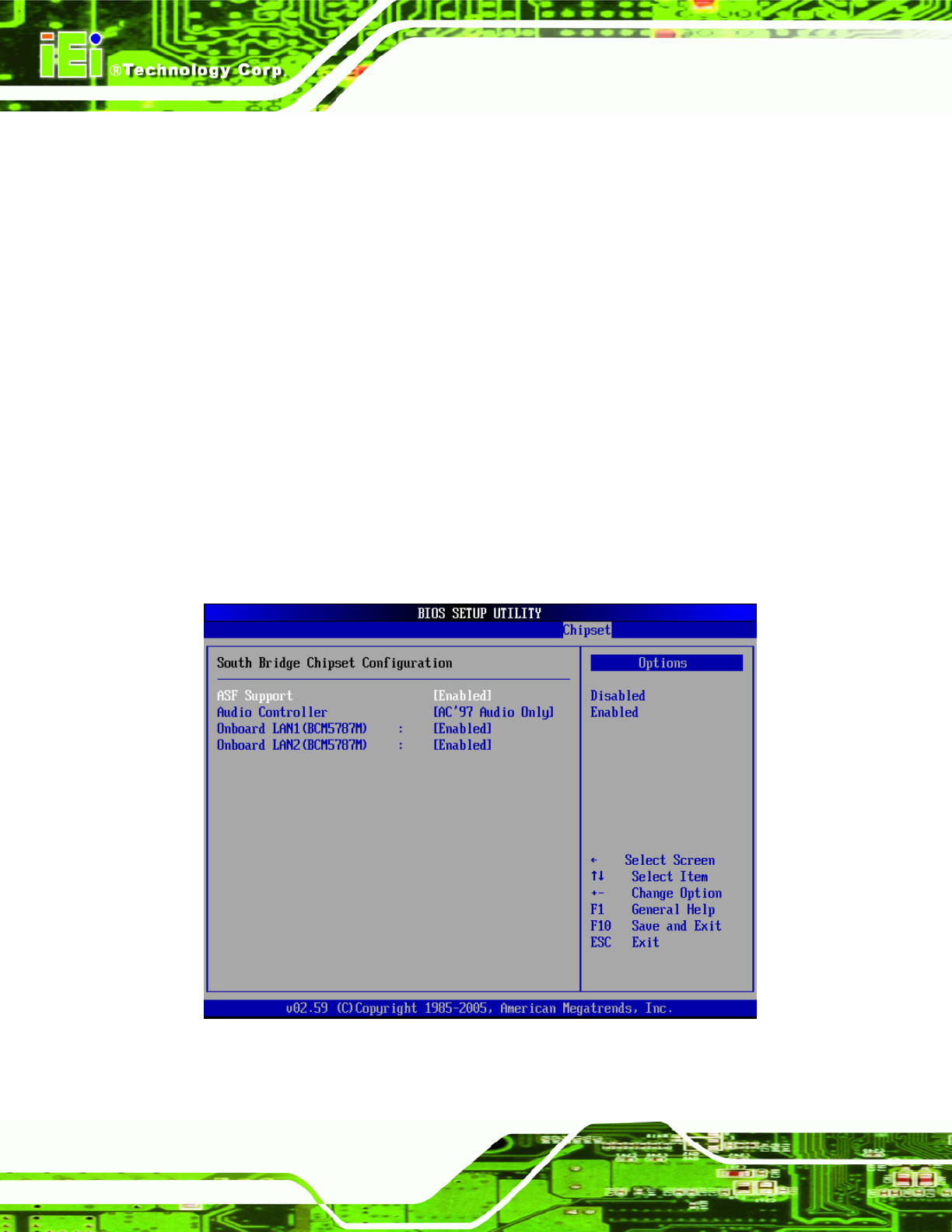

BIOS Menu 22:SouthBridge Chipset Configuration
