KINO-9453 Mini-ITX Motherboard
Page 136

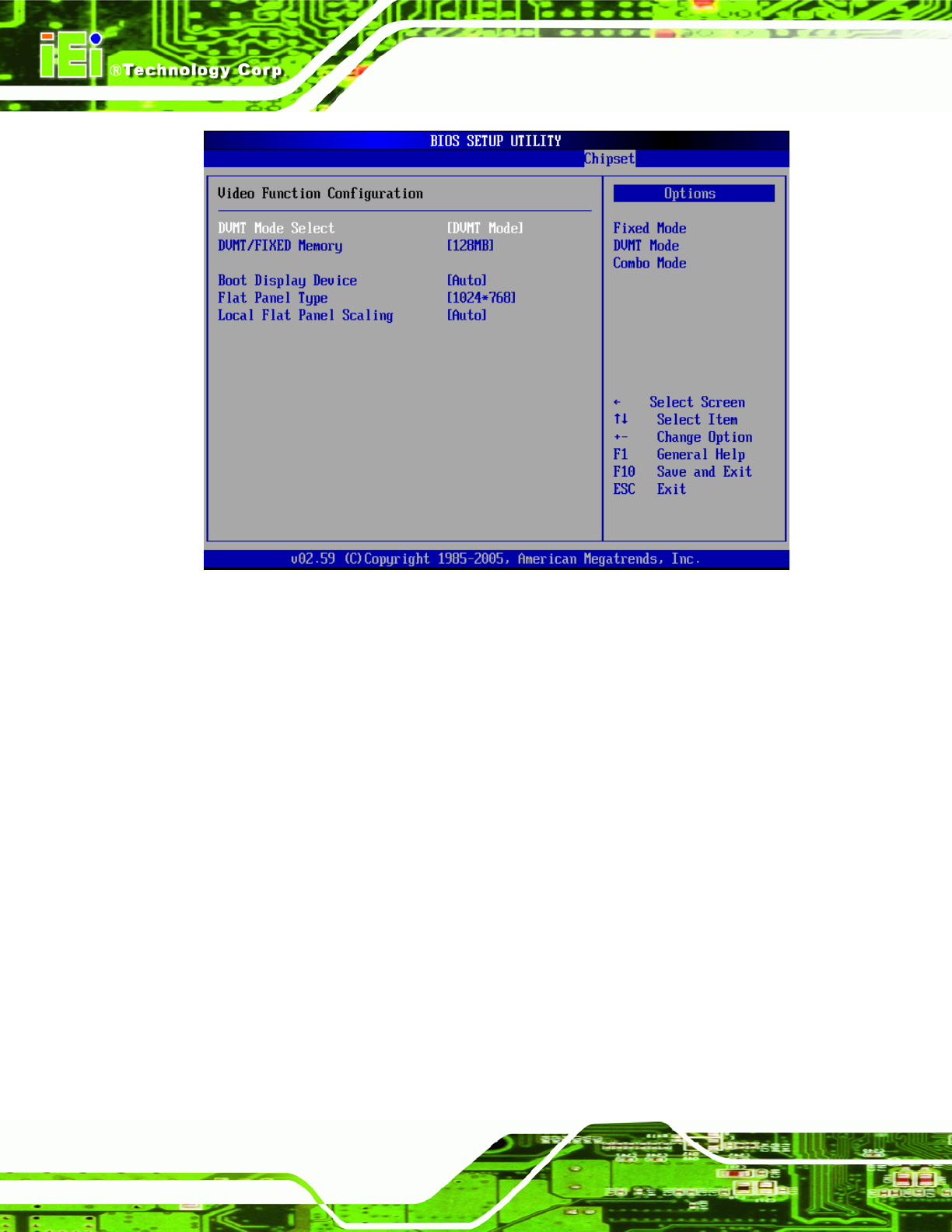

Figure 6-1: Video Function Configuration
DVMT Mode Select [DVMT Mode]
Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology
(DVMT) operating mode.
Fixed Mode
A fixed portion of graphics memory is reserved as
graphics memory.
DVMT Mode DEFAULT
Graphics memory is dynamically allocated
according to the system and graphics needs.
Combo Mode
A fixed portion of graphics memory is reserved as
graphics memory. If more memory is needed,
graphics memory is dynamically allocated
according to the system and graphics needs.
