KINO-9453 Mini-ITX Motherboard
Page 134
6.7.1 NorthBridge Configuration
Use the NorthBridge Configuration menu (BIOS Menu 20) to configure the Northbridge
chipset.

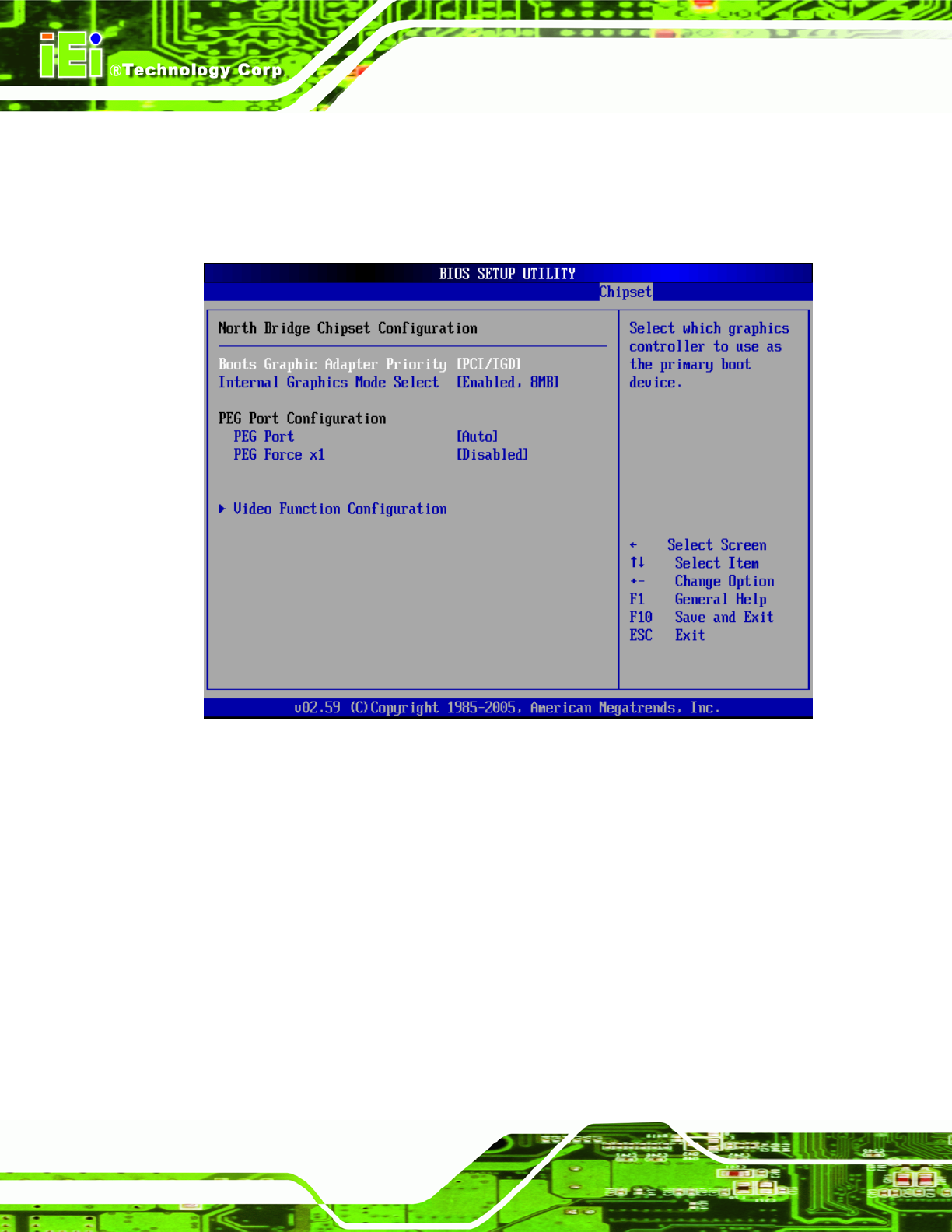

BIOS Menu 21:NorthBridge Chipset Configuration
Boots Graphics Adapter Priority [PCI/IGD]
Use the Boots Graphics Adapter Priority option to select the graphics controller used as
the primary boot device. Select either an integrated graphics controller (IGD) or a
combination of PCI graphics controller, a PCI express (PEG) controller or an IGD.
Configuration options are listed below:
IGD
PEG/IGD
PEG/PCI
PCI/PEG
