KINO-9453 Mini-ITX Motherboard
Page 126
DM Channel 7
Reserved Memory Size [Disabled]
Use the Reserved Memory Size BIOS option to specify the amount of memory that
should be reserved for legacy ISA devices.
Disabled DEFAULT
No memory block reserved for legacy ISA devices
16K
16KB reserved for legacy ISA devices
32K
32KB reserved for legacy ISA devices
64K
54KB reserved for legacy ISA devices
6.5 Boot
Use the Boot menu (BIOS Menu 15) to configure system boot options.

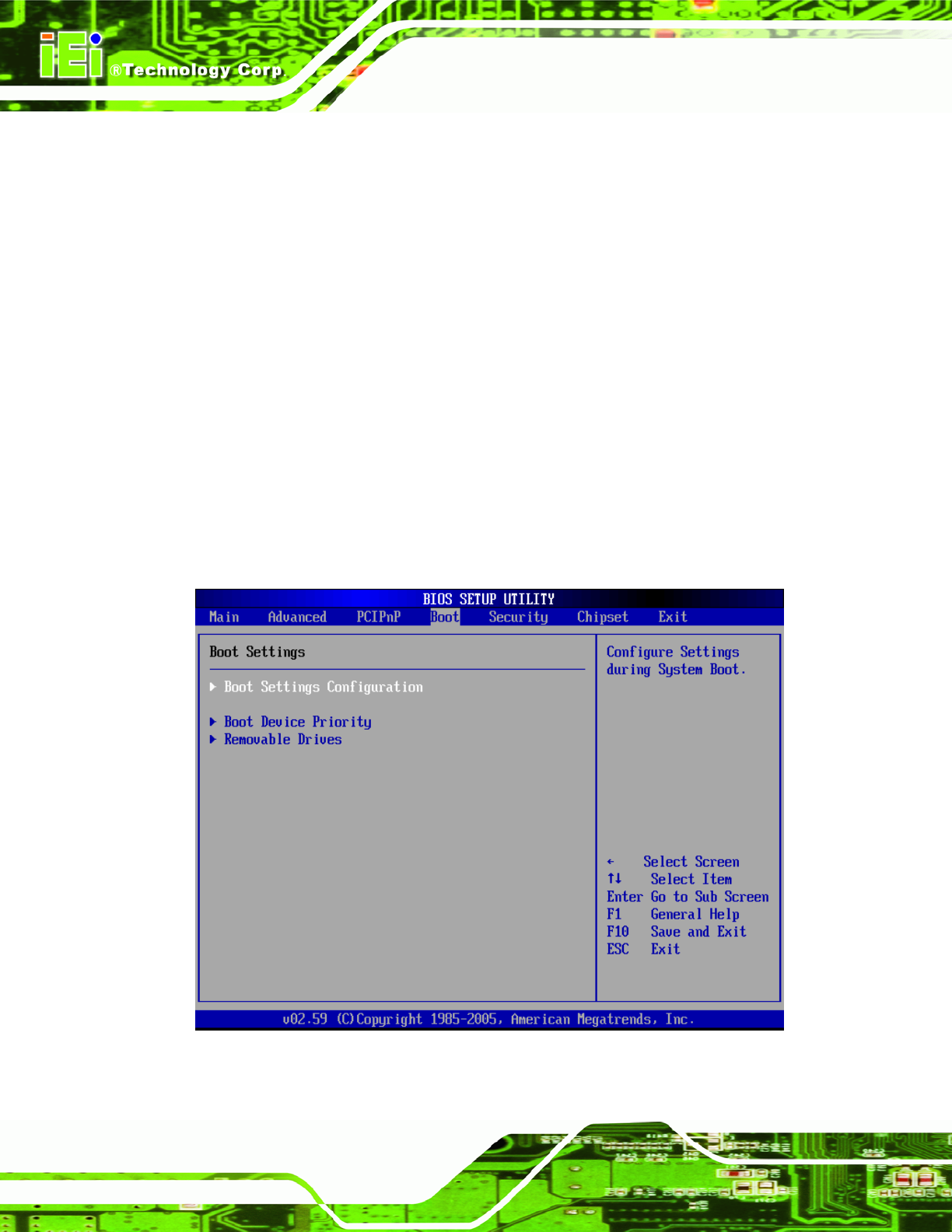

BIOS Menu 15: Boot
