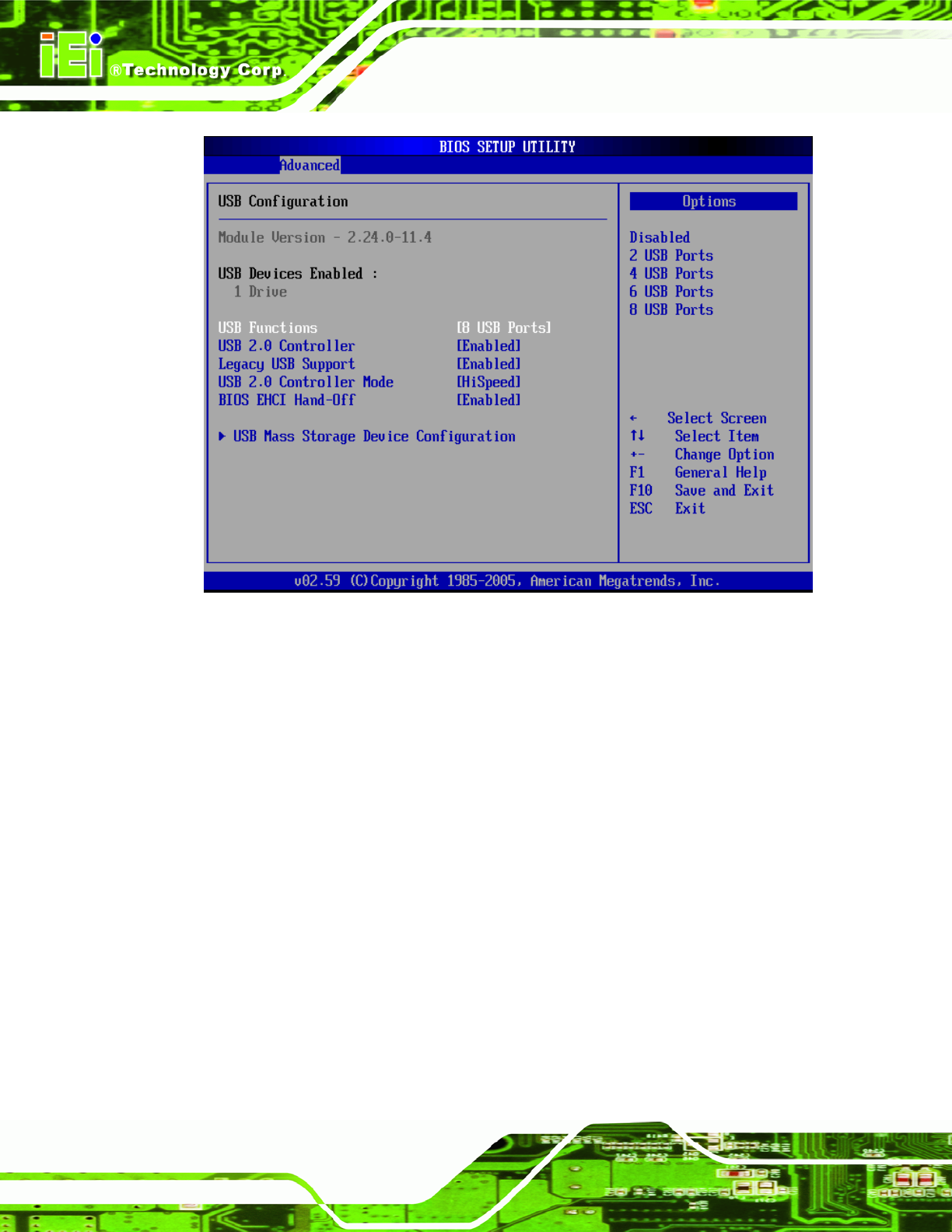

BIOS Menu 12: USB Configuration
USB Function [8 USB ports]
Use the USB Function BIOS option to enable or disable a specified number of USB ports.
If only two USB ports are being used, disabling the remaining six USB frees up system
resources that can be redirected elsewehere.
Disabled
USB function support disabled
2 USB Ports
Two USB ports are enabled
4 USB Ports
Four USB ports are enabled
6 USB Ports
Six USB ports are enabled
8 USB Ports DEFAULT
Eight USB ports are enabled
