KINO-9453 Mini-ITX Motherboard
Page 92

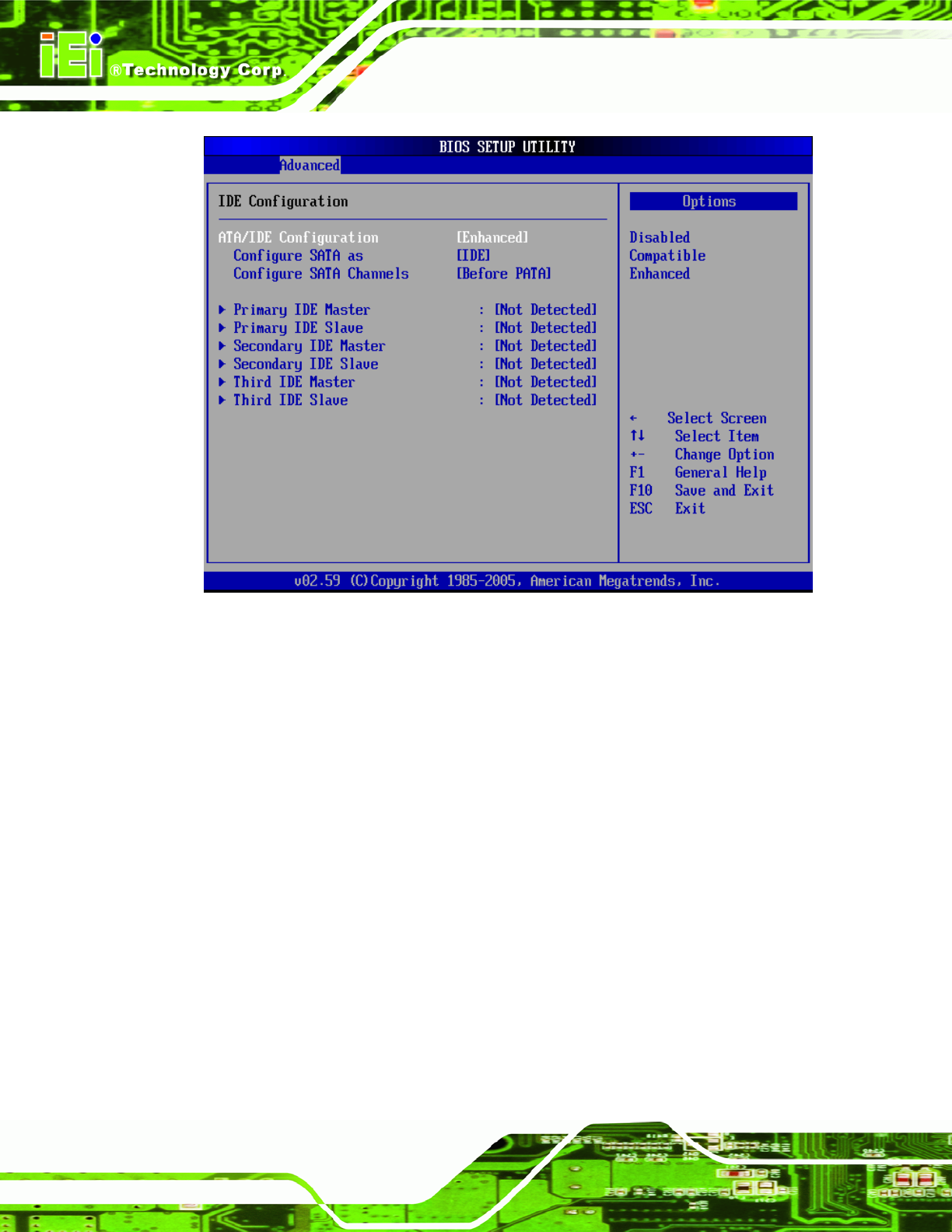

BIOS Menu 4: IDE Configuration
ATA/IDE Configuration [Enhanced]
The ATA/IDE Configuration BIOS option allows the user to configure the ATA/IDE device
mode.
Disabled
Disable all ATA/IDE ports. No Primary/Secondary IDE
mode is presented for configuration
Compatible
Up to 6 HDDs can be used, four for SATA and the other
for PATA IDE. If this option is selected, “Legacy IDE
Channels” option is presented for configuration.
Enhanced DEFAULT
The motherboard allows up to 6 HDDs to use and SATA
drives can be configured into RAID volumes. If this
option is selected, “Configure SATA as” and “Configure
