IOWA-LX-600 Half-size CPU Card
Page 58
distinguished from each other by looki ng at the small graphic at the top of the
connector. Step 0:
4.9.3 Serial Device Connection
The IOWA-LX-600 has a single female DB-9 connector on the external peripheral
interface panel for a serial device. Follow the steps b elow to conn ect a serial d evice to the
IOWA-LX-600.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the external pe ripheral interface. See
6Figure 4-14.

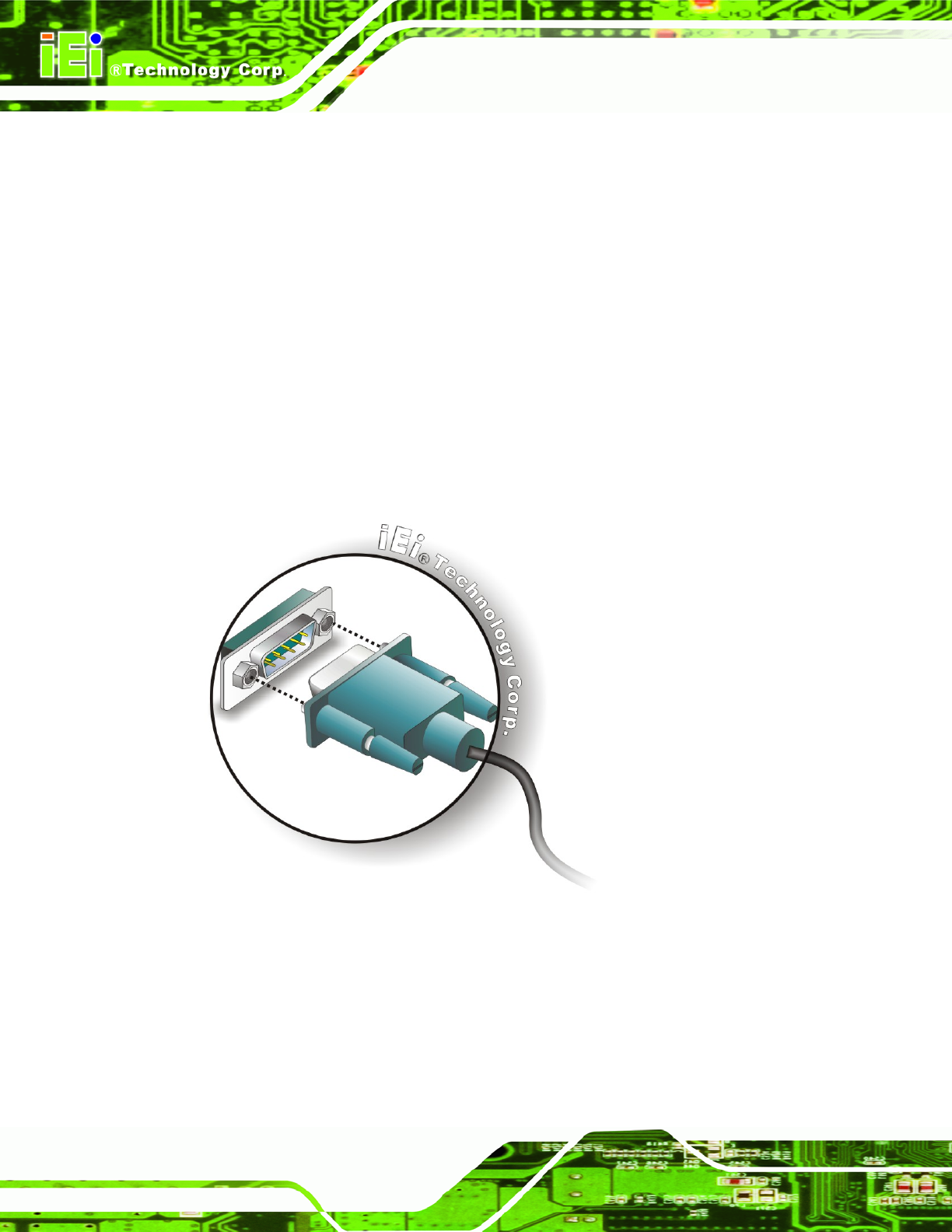

Figure 4-14: Serial Device Connector
