IOWA-LX-600 Half-size CPU Card
Page 57
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:
4.9.2 PS/2 Y-Cable Connection
The IOWA-LX-600 has a PS/2 connector on the external peripheral interface panel. The
dual PS/2 connector is connected to the PS/2 Y-cable that came with the IOWA-LX-600.
One of the PS/2 cables is connected to a keyboard and the other to a mouse to the
system. Follow the steps below to connect a keyboard and mouse to the IOWA-LX-600.
Step 1: Locate the dual PS/2 connector. The location of the PS/2 connector is shown
in Chapter 3.
Step 2: Insert the keyboard/mouse connector . Insert the PS/2 connector on the end
of the PS/2 y-cable into the external PS/2 connector. See
6Figure 4-13.

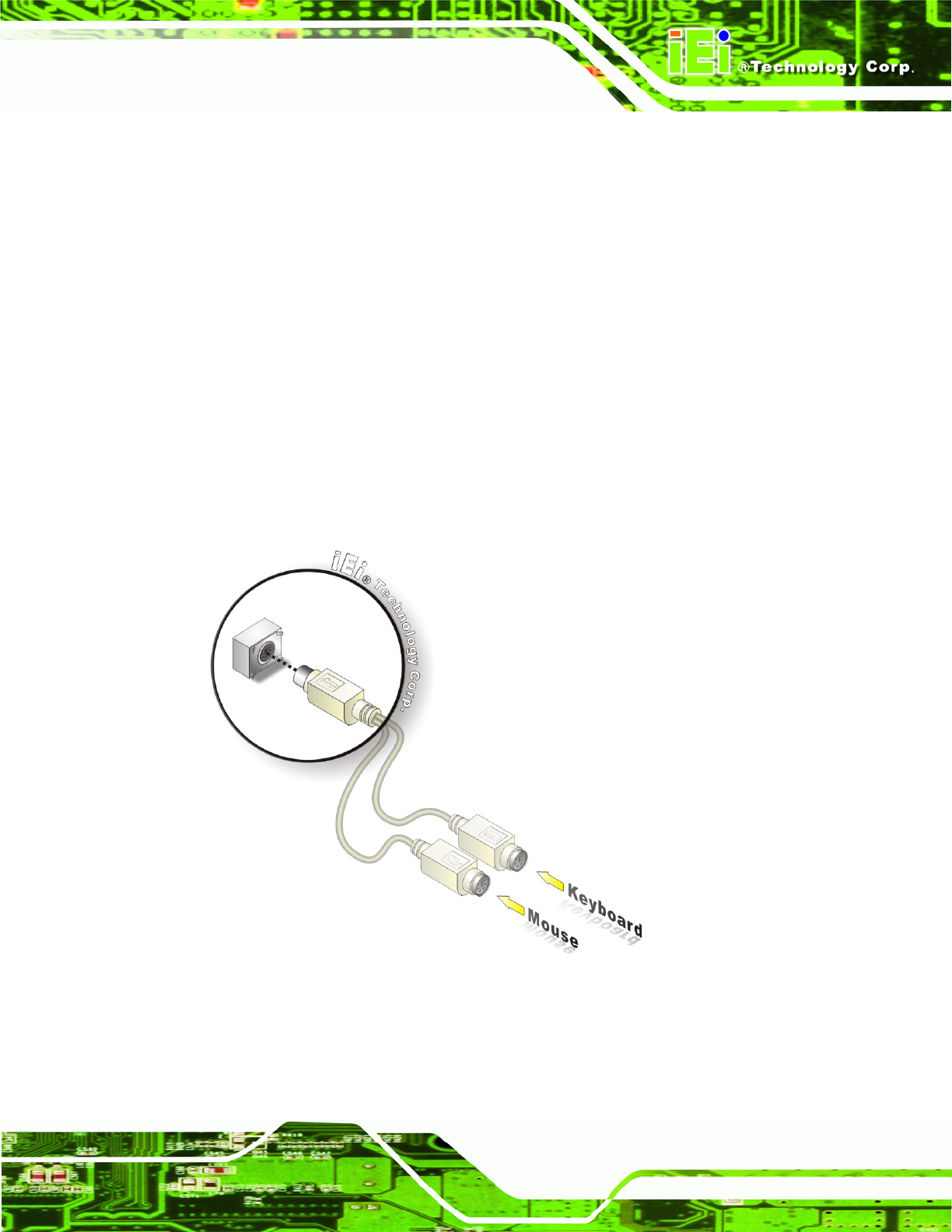

Figure 4-13: PS/2 Keyboard/Mouse Connec tor
Step 3: Connect the keyboard and mouse. Connect the keyboard and mouse to the
appropriate connector. The keyboard and mouse connectors can be
