The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.
AT/ATX Power Select jumper settings are shown in
6Table 4-2.
Setting Description
Short Use AT power (Default)
Open Use ATX power
Table 4-2: AT/ATX Power Select Jumper Settings

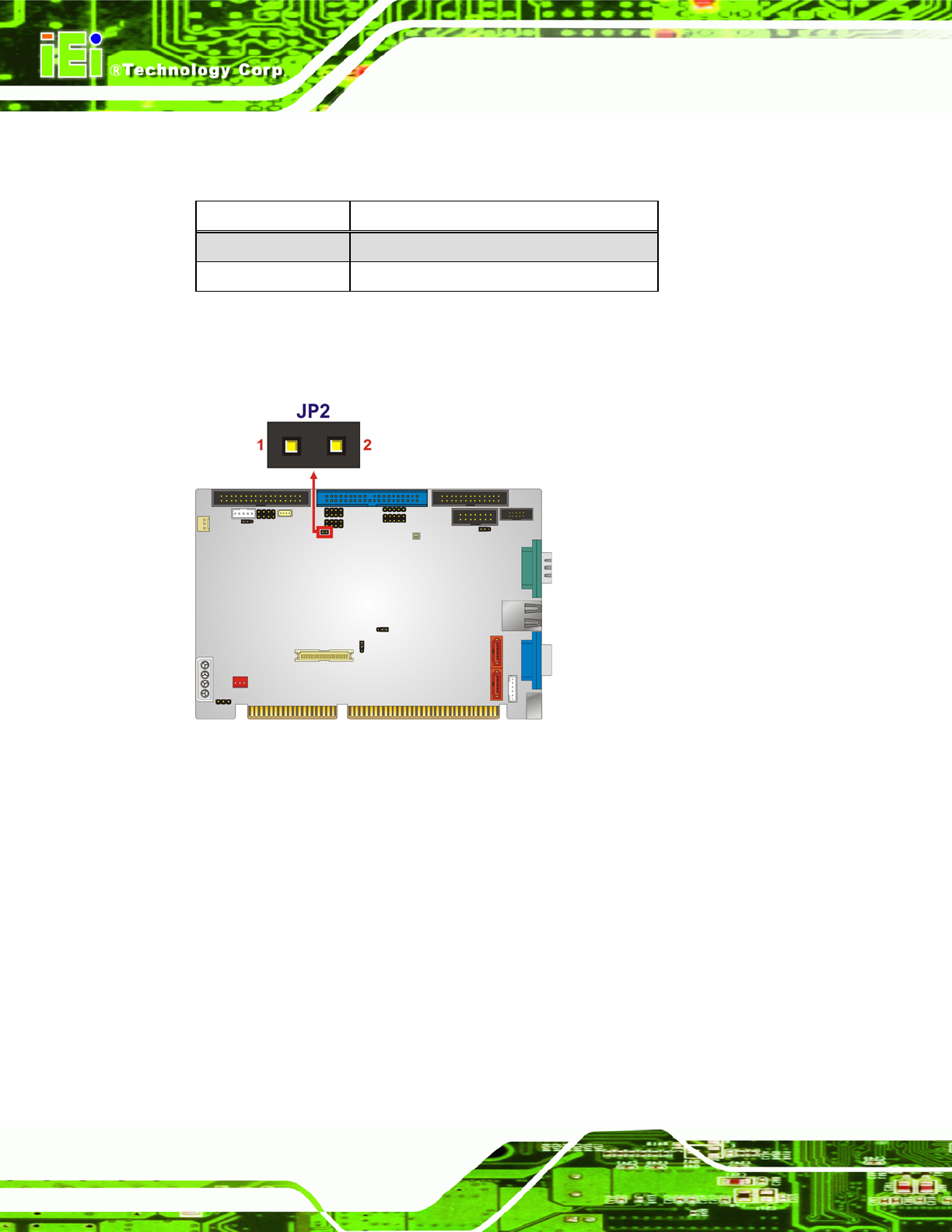

The location of the AT/ATX Power Select jumper is shown in 6Figure 4-4 below.
Figure 4-4: AT/ATX Power Select Jumper Location
4.6.2 CF Card Setup
Jumper Label: JP7
Jumper Type:
3-pin header
Jumper Settings:
See
6Table 4-3
Jumper Location:
See
6Figure 4-5
The CompactFlash® slot is connected through an IDE connection. This jumper sets the
CompactFlash® card as the master or slave IDE device.
