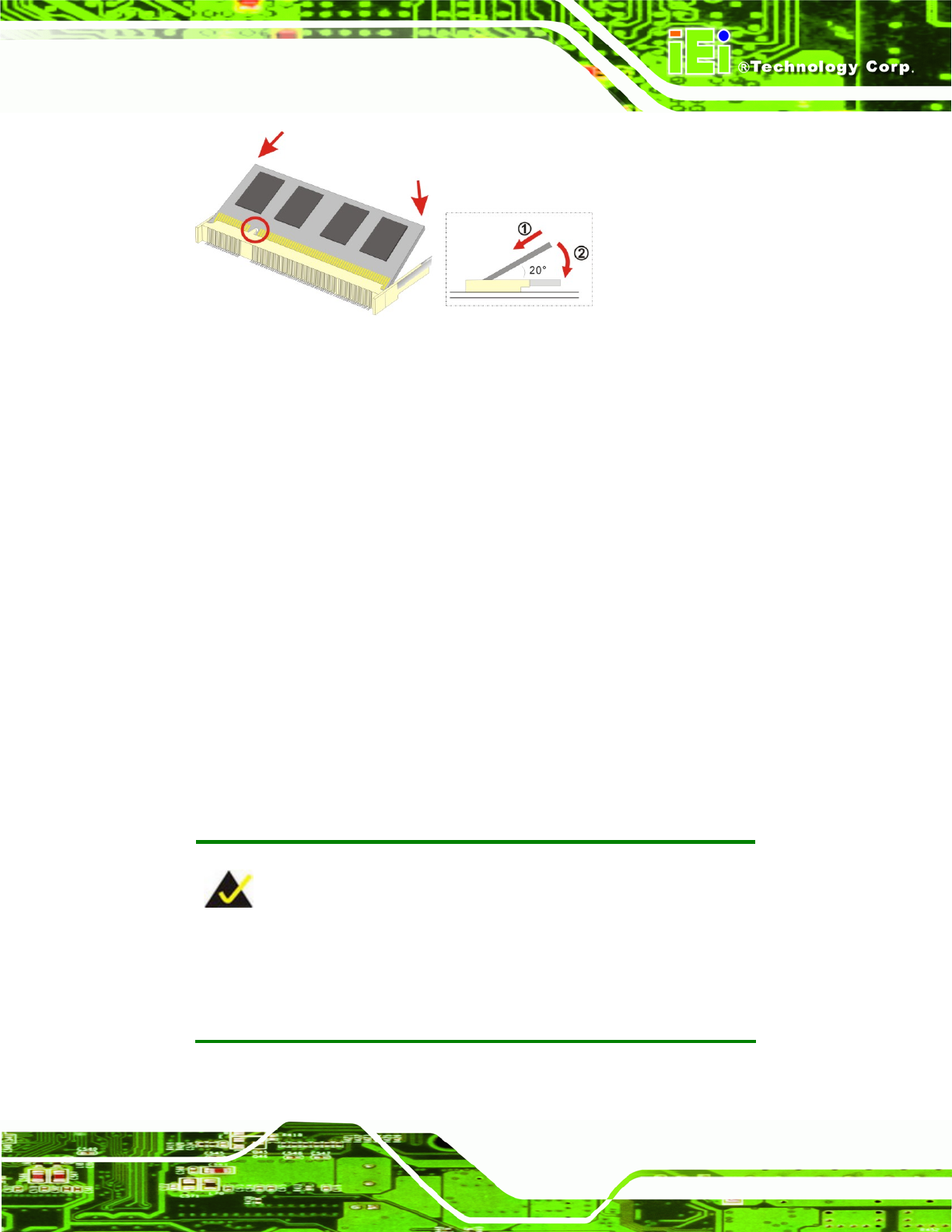

Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the IOWA-LX-600 on an anti-static p ad
with the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be orien ted in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket .
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
6Figure 4-1)
Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and push the rear of the SO-DIMM down. (See
6Figure 4-1)
Step 5: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into
place and secure the SO-DIMM in the socket.Step 0:
4.5 CF Card Installation
NOTE:
The IOWA-LX-600 can support both CF Type I cards and CF Type II
cards. For the complete specifications of the supported CF cards
please refer to Chapter 2.
