IOWA-LX-600 Half-size CPU Card
Page 40

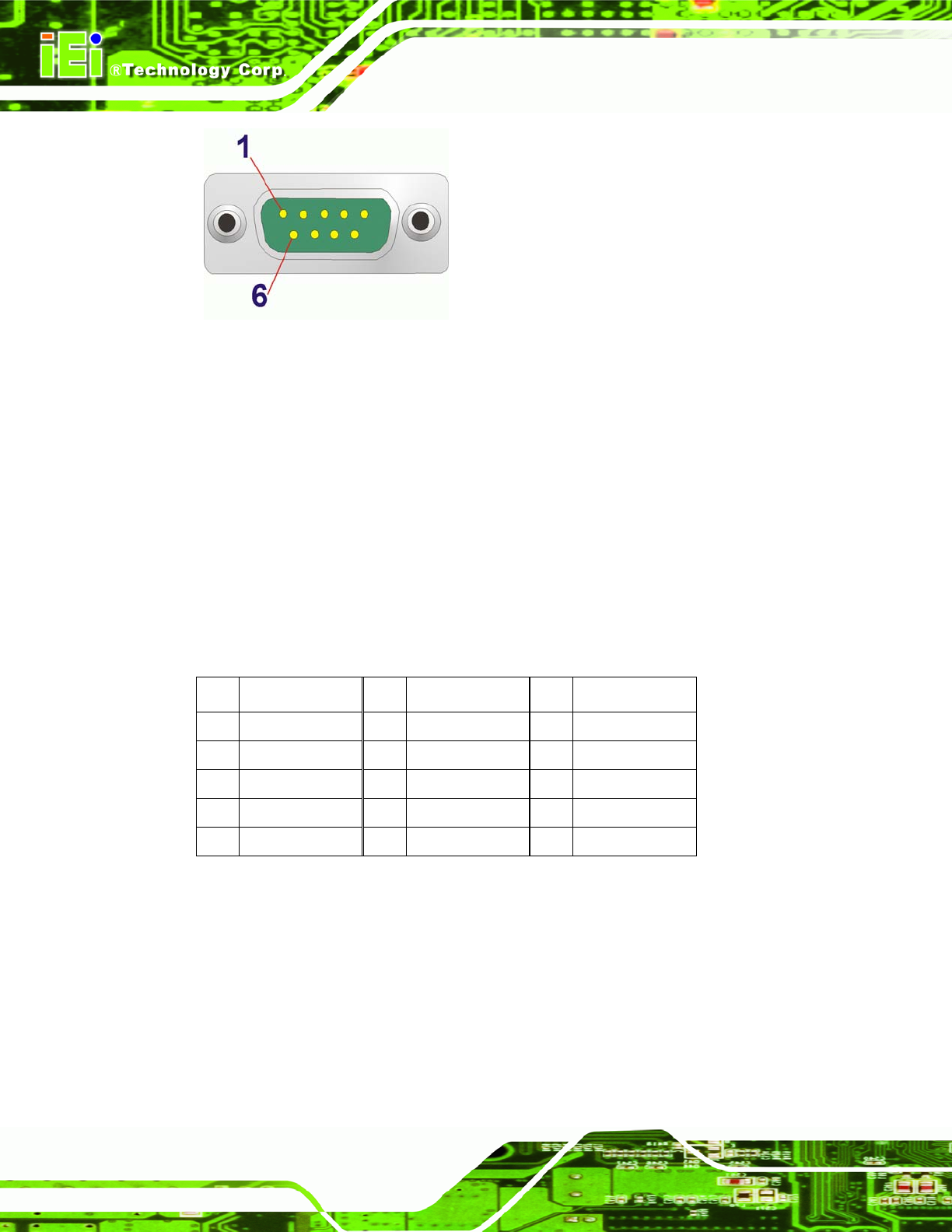

Figure 3-24: COM1 Pinout Locations
3.3.4 VGA Connector
CN Label:
CN23
CN Type:
DB-15
CN Location:
See
6Figure 3-21
CN Pinouts:
See
6Table 3-26
The standard 15-pin female DB-15 VGA connector connects to a CRT or LCD monitor
directly.
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 RED 6 GROUND 11 NC
2 GREEN 7 GROUND 12 DDCDAT
3 BLUE 8 GROUND 13 HSYNC
4 NC 9 NC 14 VSYNC
5 GROUND 10 GROUND 15 DDCCLK
Table 3-26: VGA Connector Pinouts
