IOWA-LX-600 Half-size CPU Card
Page 35
3.2.18 Internal USB Connectors
CN Label:
CN12 and CN13
CN Type:
8-pin header (2x4)
CN Location:
See
6Figure 3-19
CN Pinouts:
See
6Table 3-20
The 2x4 USB pin connectors each provide connectivity to two USB 2.0 ports. Each USB
connector can support two USB device s . The USB ports are used for I/O bus expansion.

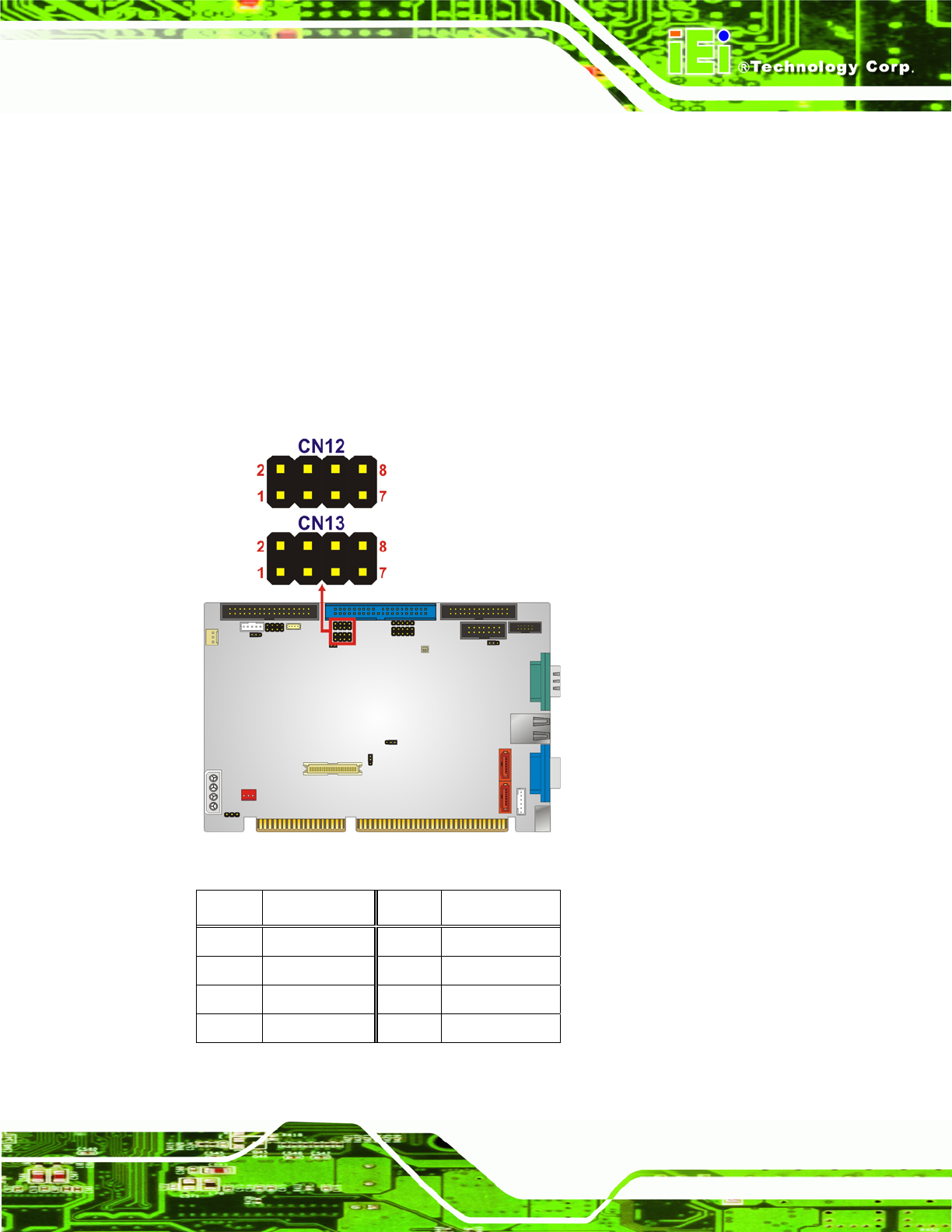

Figure 3-19: USB Connector Pinout Location s
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 GROUND
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GROUND 8 VCC
Table 3-20: USB Port Connector Pinouts
