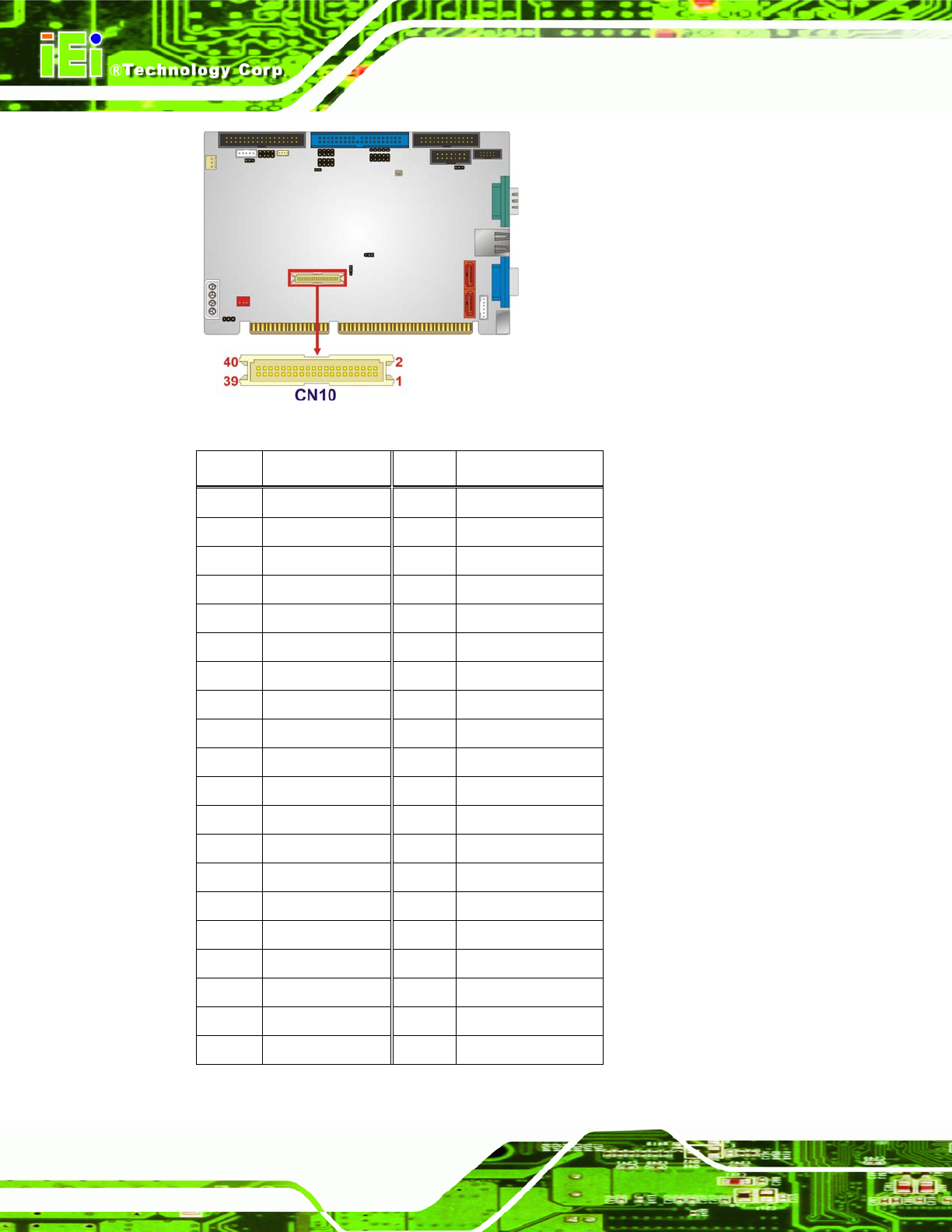

Figure 3-18: TFT LCD Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 VCD_VCC 2 VCD_VCC
3 GROUND 4 GROUND
5 VCD_VCC 6 VCD_VCC
7 I_SDATA 8 GROUND
9 TFT_B0 10 TFT_B1
11 TFT_B2 12 TFT_B3
13 TFT_B4 14 TFT_B5
15 TFT_B6 16 TFT_B7
17 TFT_G0 18 TFT_G1
19 TFT_G2 20 TFT_G3
21 TFT_G4 22 TFT_G5
23 TFT_G6 24 TFT_G7
25 TFT_R0 26 TFT_R1
27 TFT_R2 28 TFT_R3
29 TFT_R4 30 TFT_R5
31 TFT_R6 32 TFT_R7
33 GROUND 34 GROUND
35 FPCLK 36 VSYNC
37 LCD_EN 38 HSYNC
39 I_SCLK 40 DISPEN
Table 3-19: TFT LCD Port Connector Pinouts
