IOWA-LX-600 Half-size CPU Card
Page 32

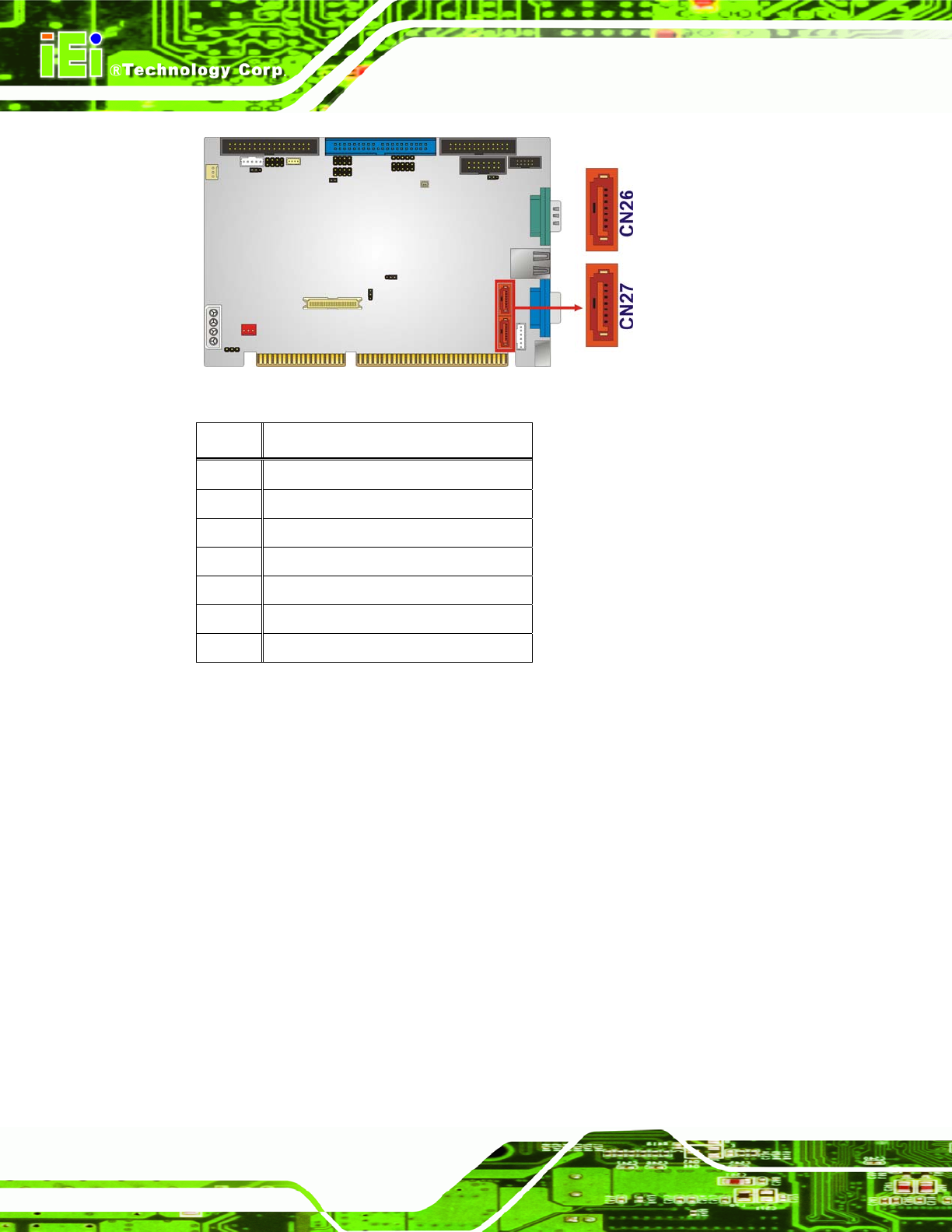

Figure 3-16: SATA Drive Connector Locations
PIN DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-17: SATA Drive Connector Pinouts
3.2.16 Serial Port Connector (RS-232/422/485)
CN Label:
CN18
CN Type:
14-pin box header (2x7)
CN Location:
See
6Figure 3-17
CN Pinouts:
See
6Table 3-18
This connector provide s RS-232 communications via pin 1 ~ pin 10 as COM2.
Pin 11 ~ pin 14 of this connector provid es RS-422 or RS-485 communications as COM3.
