IOWA-LX-600 Half-size CPU Card
Page 31
CN Location:
See
6Figure 3-15
CN Pinouts:
See
6Table 3-16
The 4-pin power connector is conne cted to a power supply.

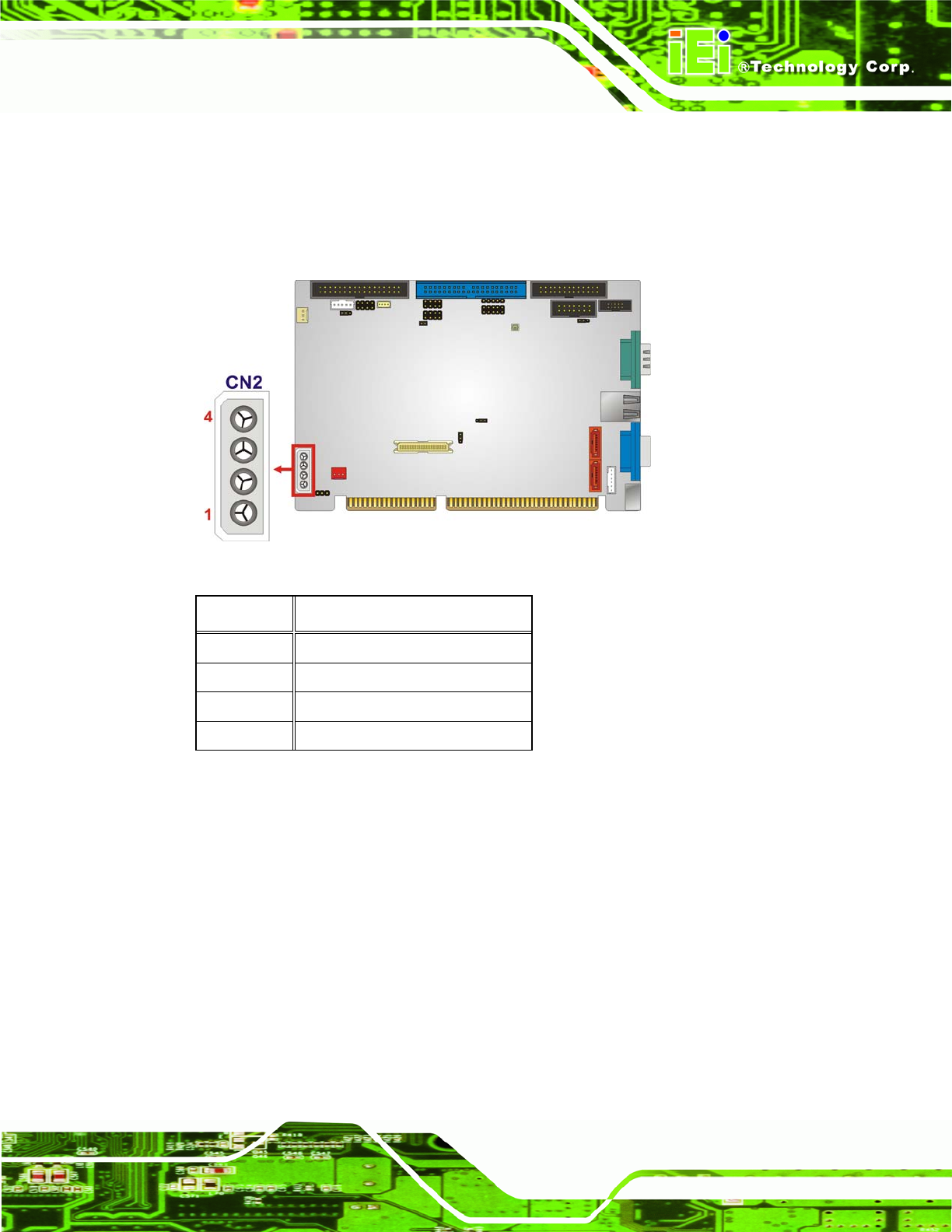

Figure 3-15: Power Connector Location
PIN DESCRIPTION
1 +5V
2 GND
3 GND
4 +12V
Table 3-16: Power Connector Pinouts
3.2.15 SATA Drive Connectors (Optional)
CN Label:
CN26 and CN27
CN Type:
7-pin SATA drive connectors
CN Location:
See
6Figure 3-16
CN Pinouts:
See
6Table 3-17
The SATA connectors connect to SATA 1.5Gb/s hard drives or optical drives. The SATA
connectors are option and only for IOWA-LX-600S model.
