IOWA-LX-600 Half-size CPU Card
Page 24
3.2.8 Floppy Disk Connector
CN Label:
CN9
CN Type:
34-pin header (2x17 )
CN Location:
See
5Figure 3-9
CN Pinouts:
See
5Table 3-10
The floppy disk conne ctor is connected to a floppy disk drive.

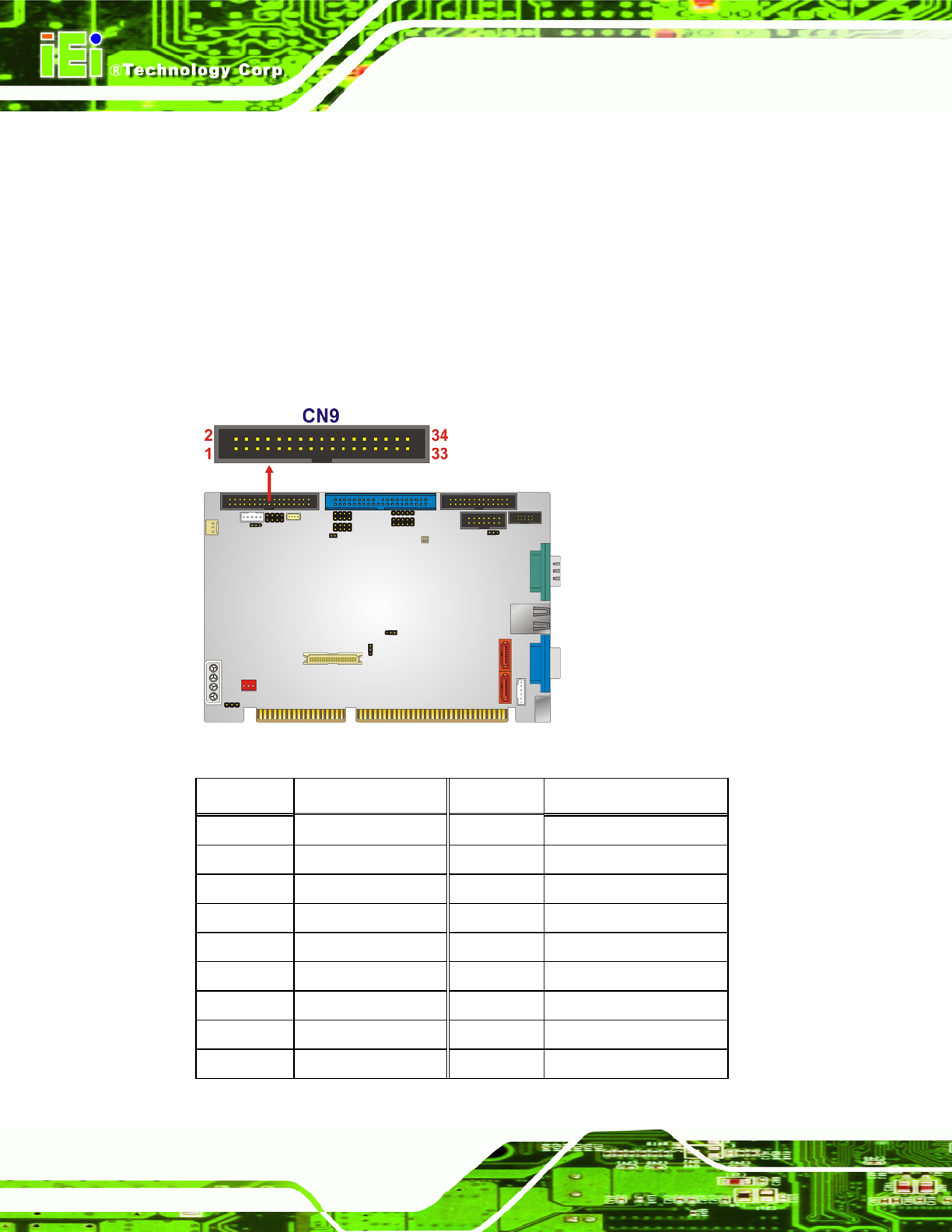

Figure 3-9: FDD Connector Location
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 2 DRVDEN0
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOT0#-
11 GROUND 12 N/C
13 GROUND 14 DSA#-
15 GROUND 16 N/C
17 GROUND 18 DIR#
