IOWA-LX-600 Half-size CPU Card
Page 22
PIN DESCRIPTION PIN DESCRIPTION
23 SDD2 48 SDD9
24 N/C 49 SDD10
25 CFD1 50 GROUND
Table 3-7: CF Card Socket Pinouts
3.2.6 Digital Input/Output (DIO) Connector
CN Label:
CN16
CN Type:
10-pin header (2x5)
CN Location:
See
5Figure 3-7
CN Pinouts:
See
5Table 3-8
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user progra mmable.

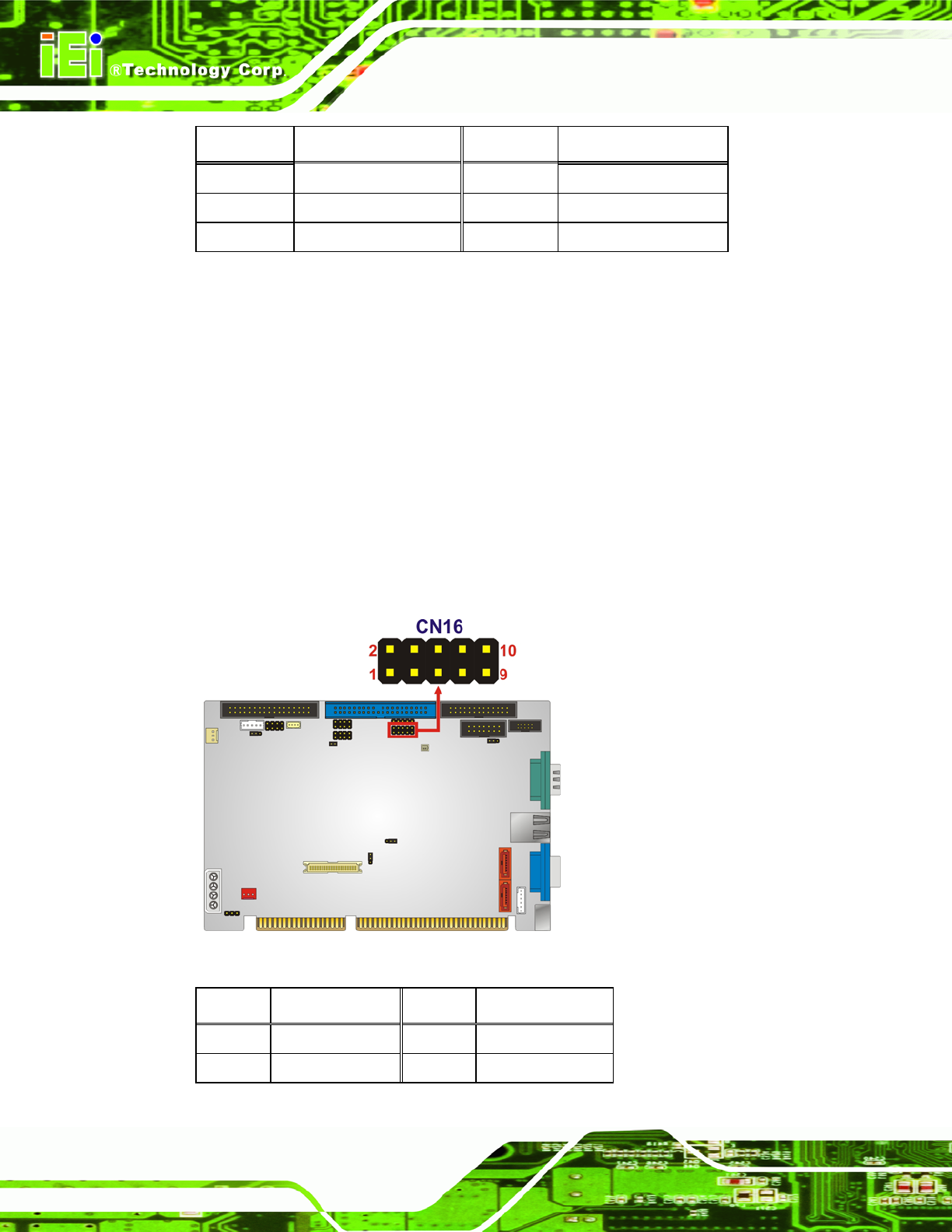

Figure 3-7: DIO Connector Locations
PIN DESCRIPTION PIN DESCRIPTION
1 Ground 2 +5V
3 Output 0 4 Output 1
