IOWA-LX-600 Half-size CPU Card
Page 21

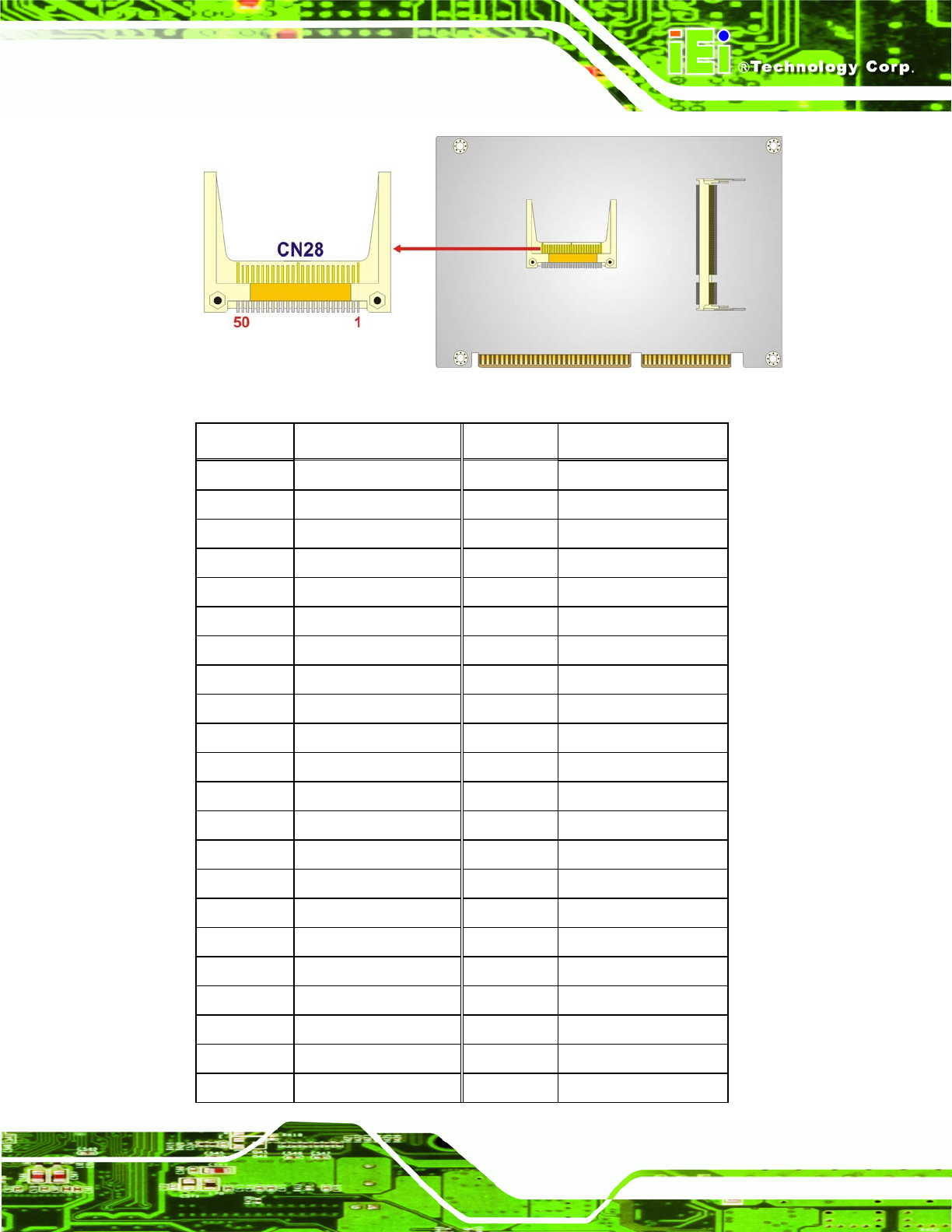

Figure 3-6: CF Card Socket Location
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 26 CFD2
2 SDD3 27 SDD11
3 SDD4 28 SDD12
4 SDD5 29 SDD13
5 SDD6 30 SDD14
6 SDD7 31 SDD15
7 SDCS1# 32 SDCS3#
8 GROUND 33 N/C
9 GROUND 34 SDIOR#
10 GROUND 35 SDIOW#
11 GROUND 36 VCC
12 GROUND 37 IRQ15
13 VCC 38 VCC
14 GROUND 39 MASTER/SLAVE
15 GROUND 40 N/C
16 GROUND 41 RESET#
17 GROUND 42 SIORDY
18 SDA2 43 SDDREQ
19 SDA1 44 SDDACK#
20 SDA0 45 HD_LED2
21 SDD0 46 PDIAG#
22 SDD1 47 SDD8
