IOWA-LX-600 Half-size CPU Card
Page 19

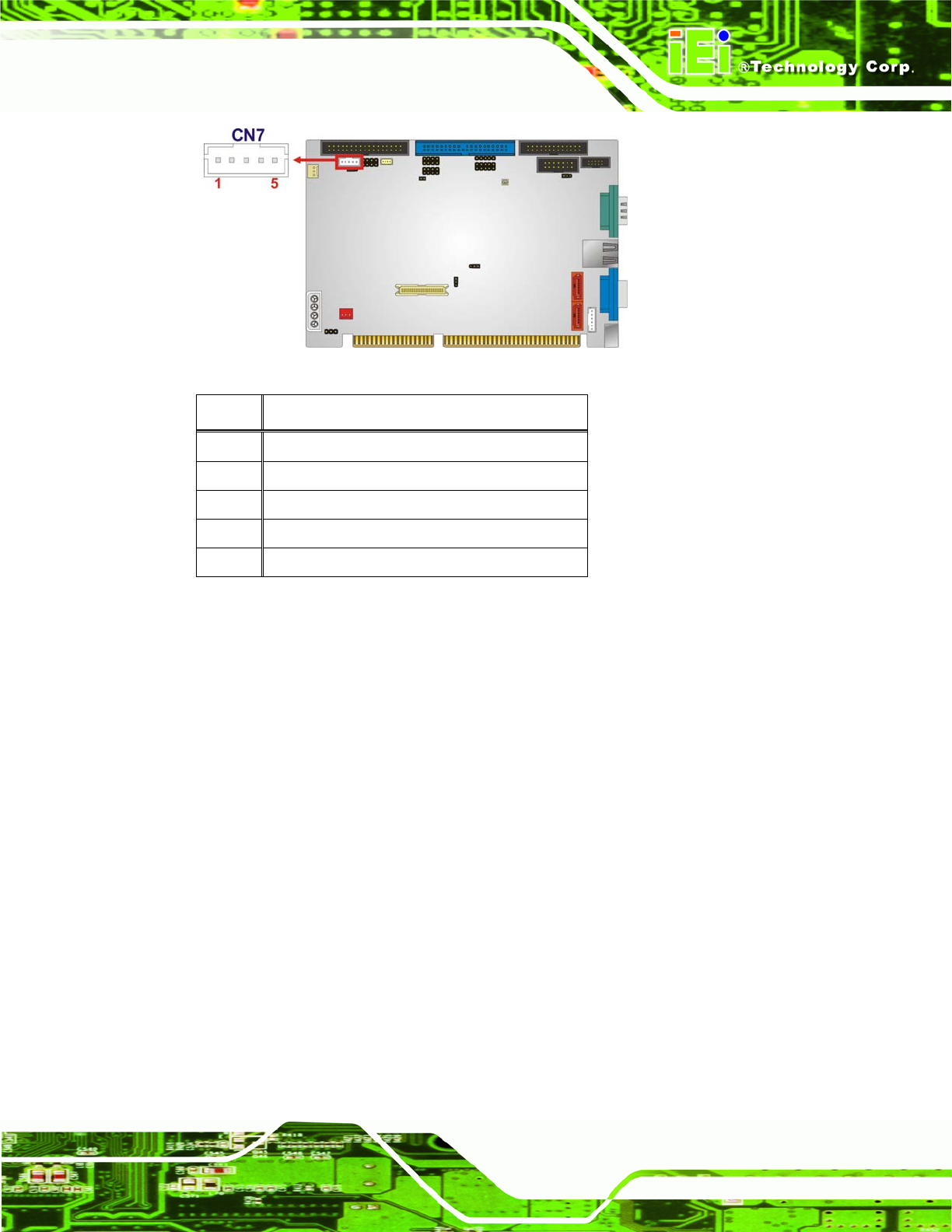

Figure 3-4: Backlight Inverter Connector Pinout Locations
PIN DESCRIPTION
1 GND
2 GND
3 +12V
4 GND
5 LCD Enable
Table 3-5: Backlight Inverter Connector Pinouts
3.2.4 Battery Connector
CN Label:
CN14
CN Type:
2-pin wafer (1x2)
CN Location:
See
5Figure 3-5
CN Pinouts:
See
5Table 3-6
The battery connector is connected to a backup battery. The battery connector is also
used to reset the CMOS memory if the incorrect BIOS settings have been made and the
system cannot boot up.
