IOWA-LX-600 Half-size CPU Card
Page 18

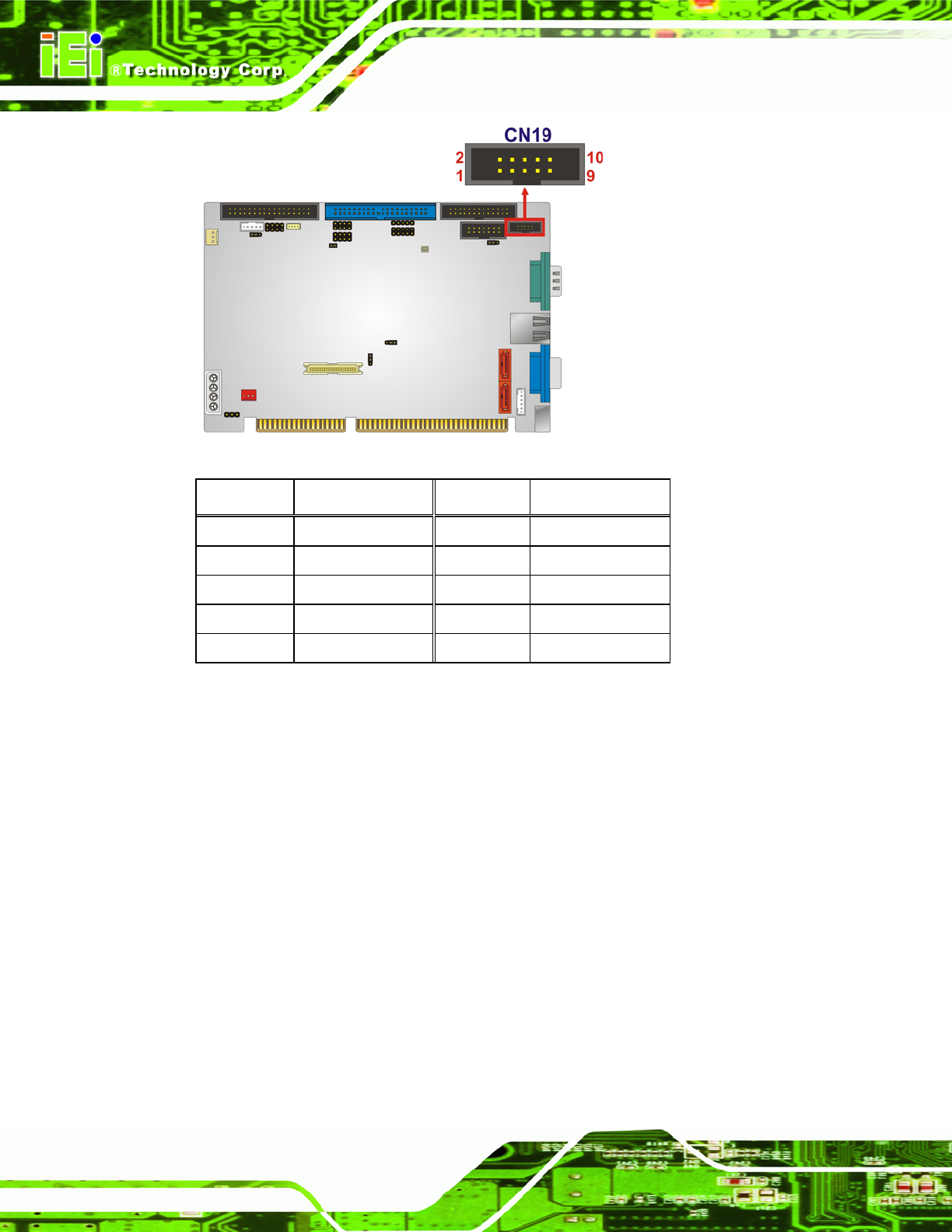

Figure 3-3: Audio Connector Pinouts (10-pin)
PIN DESCRIPTION PIN DESCRIPTION
1 Line out (Right) 2 Line in (Right)
3 GND 4 GND
5 Line out (Left) 6 Line in (Left)
7 GND 8 GND
9 MIC1 in 10 MIC2 in
Table 3-4: Audio Connector Pinouts (10-pin)
3.2.3 Backlight Inverter Connector
CN Label:
CN7
CN Type:
5-pin wafer (1x5)
CN Location:
See
5Figure 3-4
CN Pinouts:
See
5Table 3-5
The backlight inverter connector provides the backlight on the LCD display connected to
the IOWA-LX-600 with +12V of power.
