IOWA-LX-600 Half-size CPU Card
Page 116
recovery files in Section 777B.2.2 is hidden and the recovery tool is saved in this
partition.

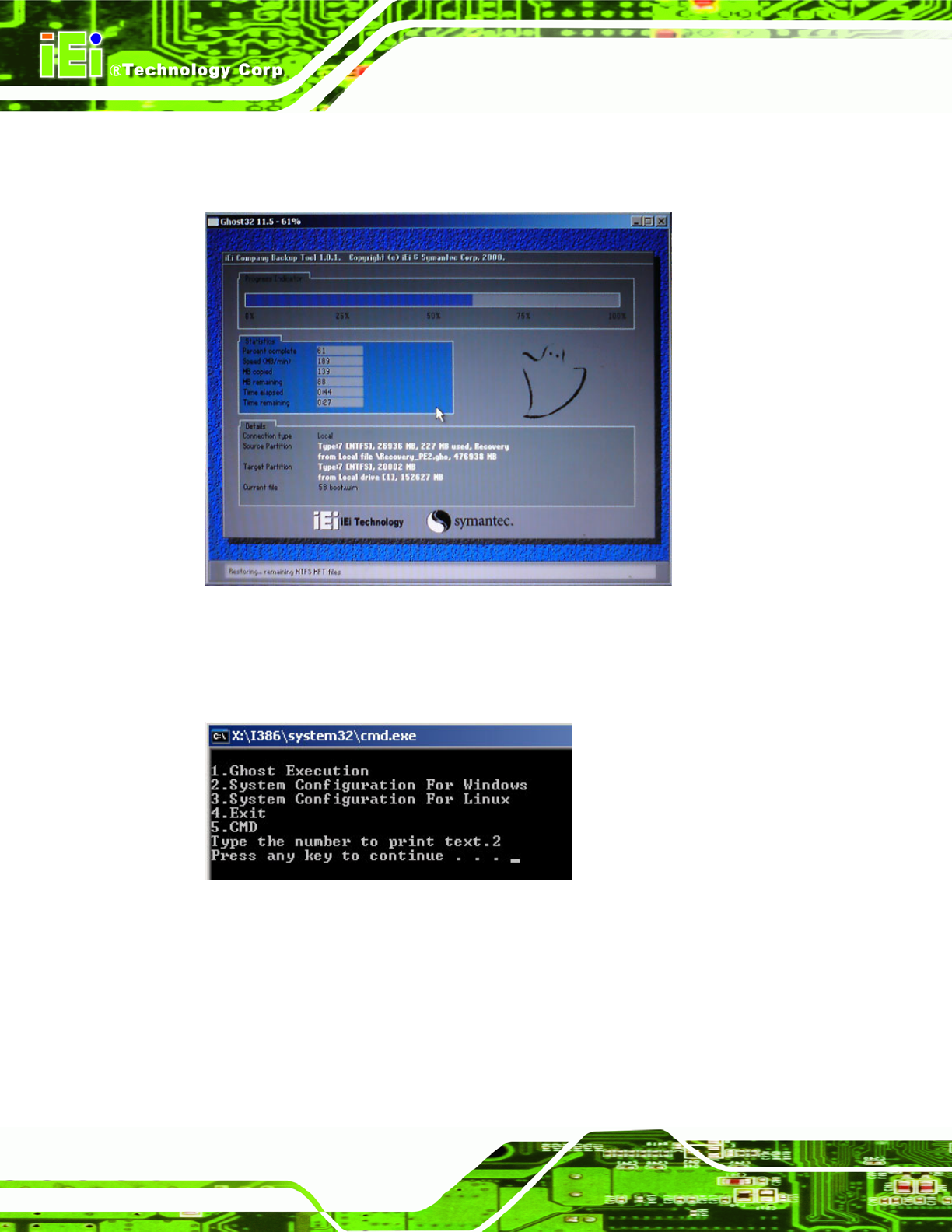

Figure B-8: Build-up Recovery Partition
Step 6: After completing the syste m configuration, press any key in the following window
to reboot the system.
Figure B-9: Press any key to continue
Step 7: Eject the recovery CD. Step 0:
