2.1 HDCapture SDK Overview
The HDCapture SDK is a video capture tool that allows user to capture video through the
DVI-I input port in Windows environment. The HDCapture SDK also includes decoding
function that decodes the video signal for video output to the DVI-enabled display device.
2.2 Video Capture
To use the HDCapture SDK to capture video, follow the steps below. If the older version of
the HDCapture SDK is already installed, please refer to Section
1.3.3 to uninstall it.
Step 1: Launch the HDCapture SDK. The Device Setting button (Device 0) is on the
right side panel of the HDCapture SDK (
Figure 2-1). The best resolution to view
HDCapture SDK is 1280x1024 or above.

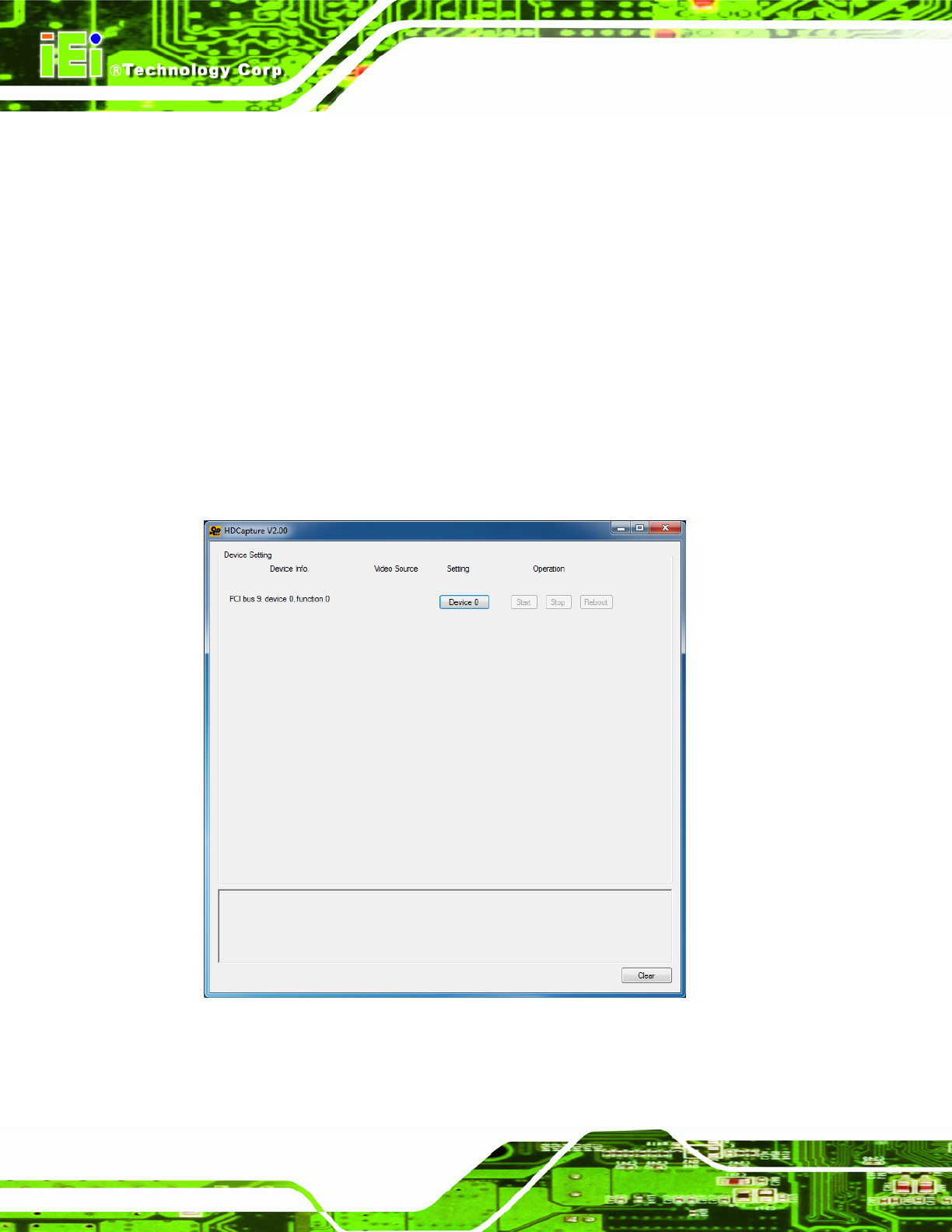

Figure 2-1: HDCapture SDK
Step 2: Enable and configure the device settings by clicking the Device 0 button.
