eKINO-945GSE Motherboard
Page 48
4.2.15 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type:
7-pin SATA drive connectors
CN Location:
See
8Figure 4-16
CN Pinouts:
See
8Table 4-14
The four SATA drive connectors are each connected to a first generation SATA drive. First
generation SATA drives transfer data at speeds as high as 150 Mb/s. The SATA drives
can be configured in a RAID configuration.

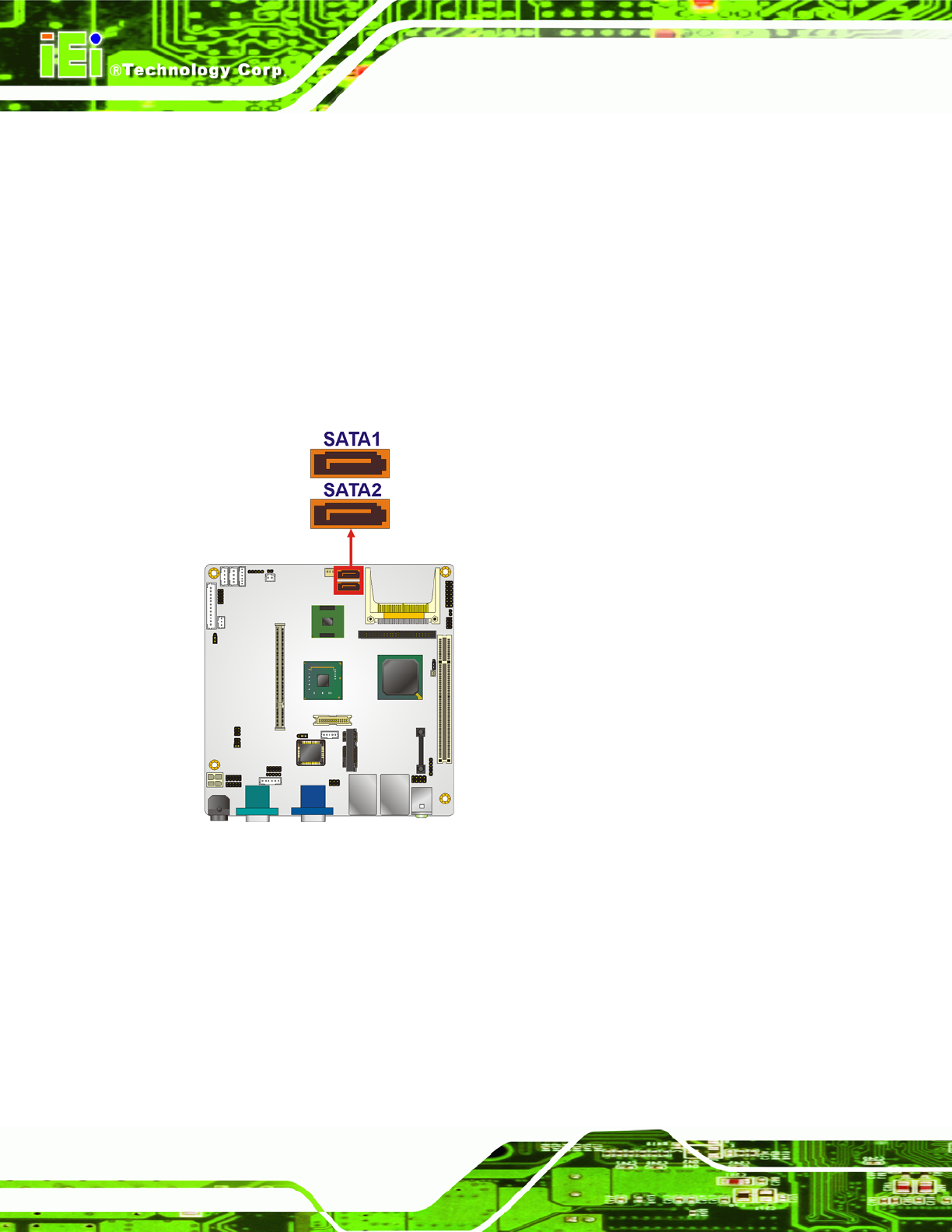

Figure 4-16: SATA Drive Connector Locations
4.2.16 SATA Power Connectors
CN Label: PW1 and PW2
CN Type:
4-pin box header
CN Location:
See Figure 4-16
CN Pinouts:
See Table 4-14
