The 30-pin LVDS LCD connector can be connected to single channel or dual channel,
18-bit or 36-bit LVDS panel.

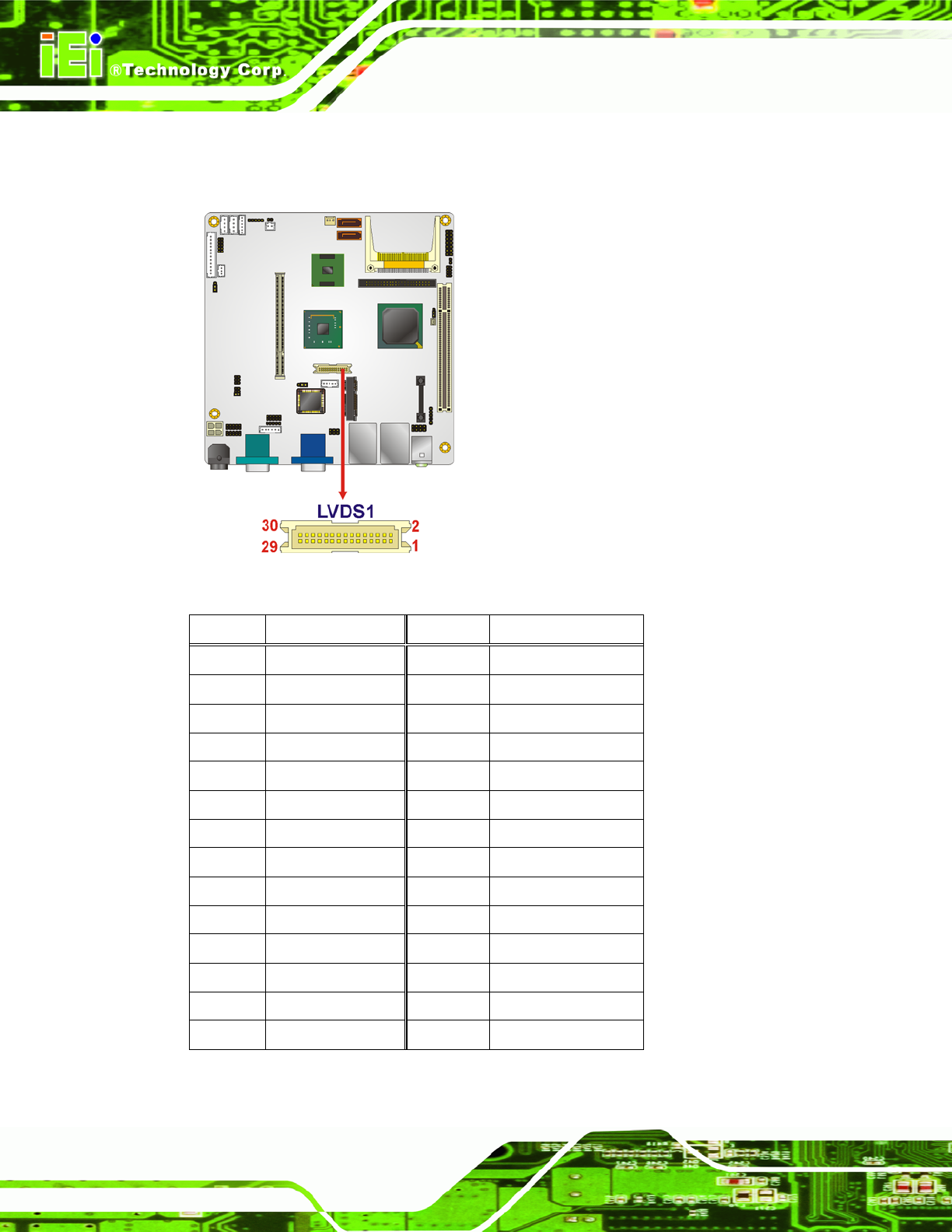

Figure 4-12: LVDS LCD Connector Pinout Locations
Pin No. Description Pin No. Description
1 GROUND 2 GROUND
3 LVDS_A0+ 4 LVDS_A0-
5 LVDS_A1+ 6 LVDS_A1-
7 LVDS_A2+ 8 LVDS_A2-
9 LVDS_ACLK+ 10 LVDS_ACLK-
11 N/C 12 N/C
13 GROUND 14 GROUND
15 LVDS_B0+ 16 LVDS_B0-
17 LVDS_B1+ 18 LVDS_B1-
19 LVDS_B2+ 20 LVDS_B2-
21 LVDS_BCLK+ 22 LVDS_BCLK-
23 N/C 24 N/C
25 GROUND 26 GROUND
27 LCDVCC 28 LCDVCC
