8.2.2.2 Battery Detection
When the smart battery is connected to the AUPS series power module, the AUPS Battery
Status Monitor detects it and shows in the screen as
Figure 8-9. Two batteries can be
connected to the AUPS series power module at the same time. The second battery
information is shown in the Battery A Detection section if connected.

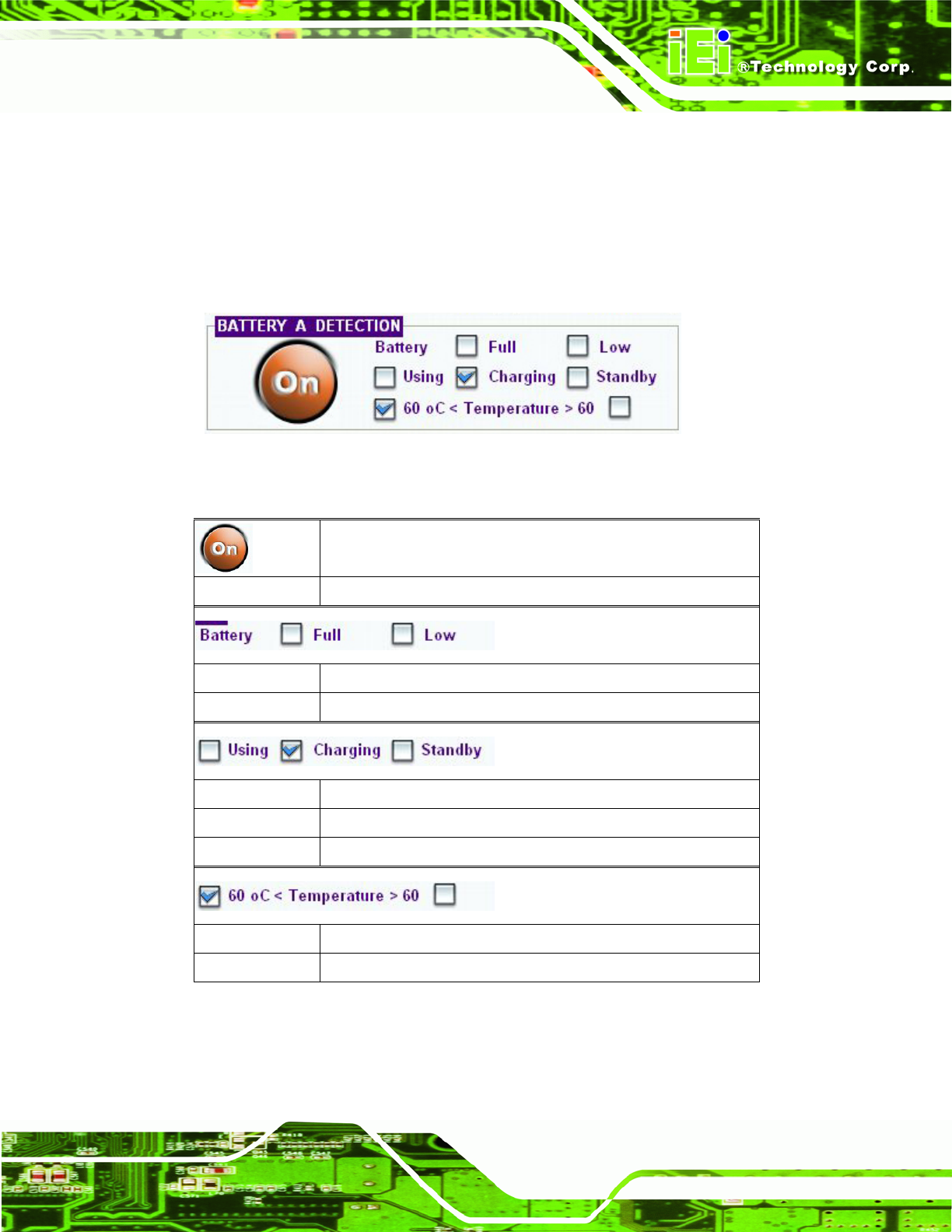

Figure 8-9: Battery Detection
The battery is connected to the AUPS series.
Off The battery is not connected to the AUPS series.
Full The battery is fully charged.
Low The battery is low.
Using The battery is being used.
Charging The battery is being charged.
Standby The battery is fully charged and ready to be used anytime.
>60 C The battery temperature is above 60°C.
<60 C The battery temperature is below 60°C.
Table 8-1: Status Settings
