eKINO-945GSE Motherboard
Page 154
Step 5: The AC’97 Driver Installation screen in Figure 7-21 appears.

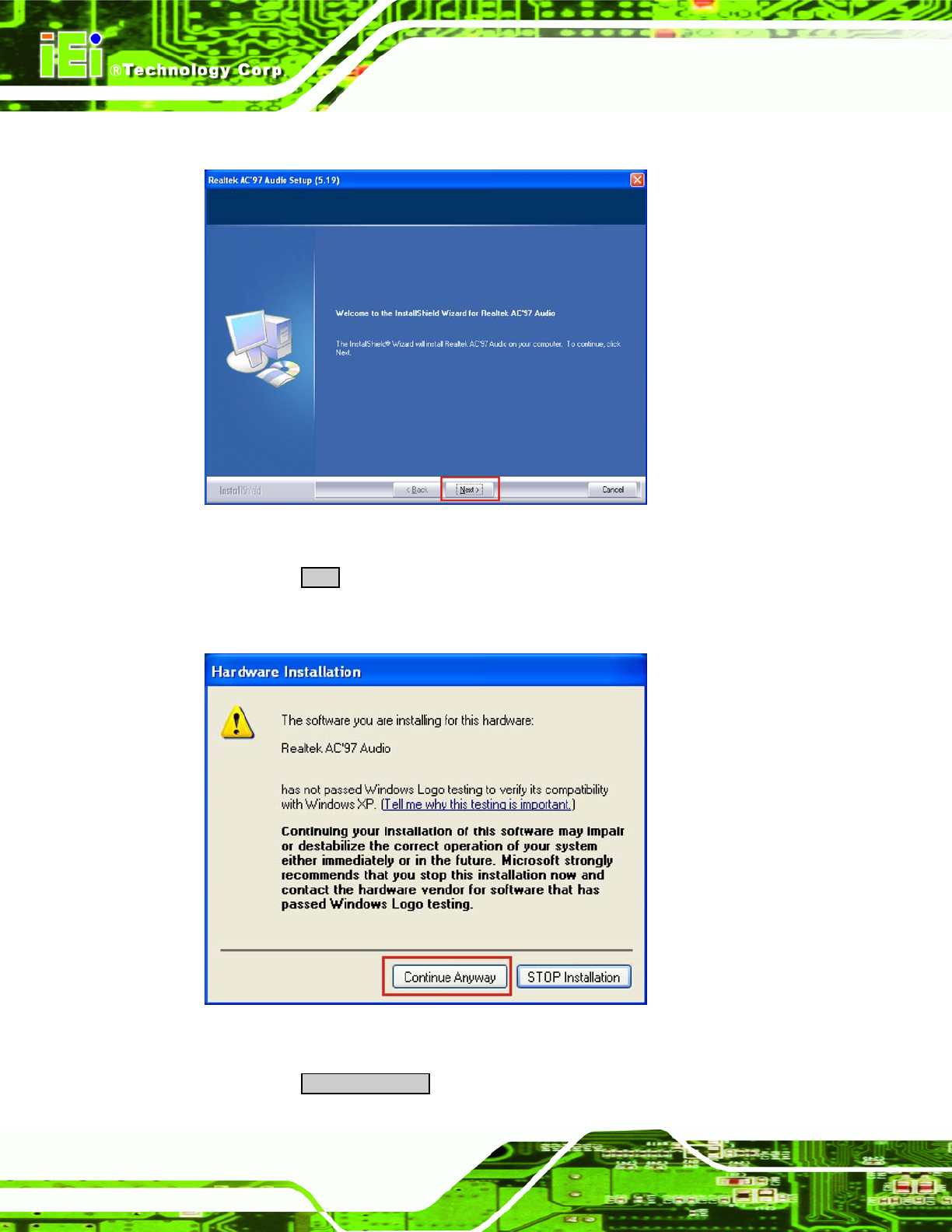

Figure 7-21: AC’97 Driver Installation Welcome Screen
Step 6: Click NEXT to continue.
Step 7: The Verification window in Figure 7-22 may appear.
Figure 7-22: AC’97 Driver Installation Verification
Step 8: Click CONTINUE ANYWAY.
