eKINO-945GSE Motherboard
Page 149

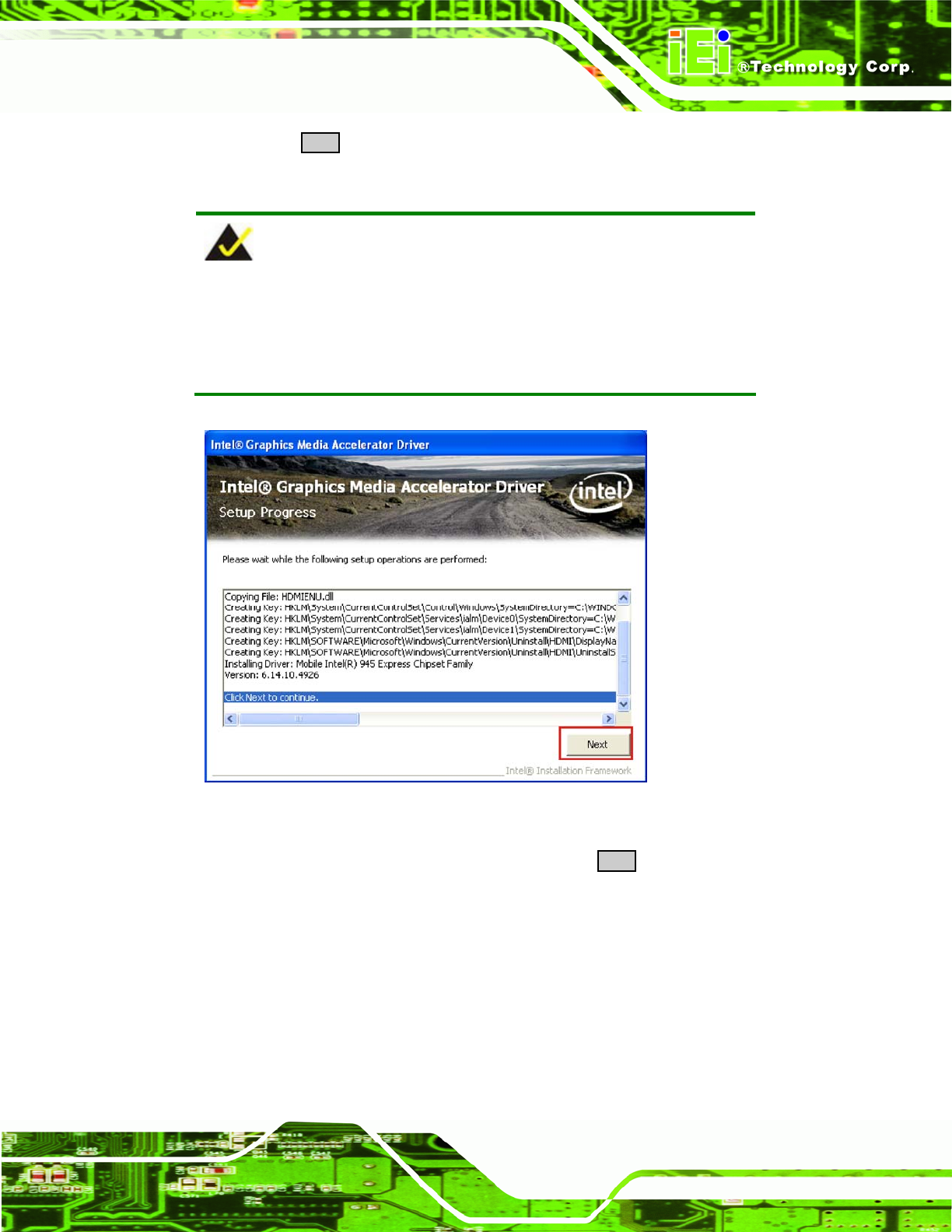

Step 12: Click NEXT to continue.
Step 13: Setup Operations are performed as shown in Figure 7-14.
NOTE:
The “Found New Hardware Wizard” will appear and then disappear
during this step. Do not adjust any settings in the “Found New
Hardware Wizard” window.
Figure 7-14: VGA Driver Setup Operations
Step 14: Once the Setup Operations are complete, click NEXT to continue.
Step 15: The Finish screen appears.
