AUPS Series Power Module User Manual
Page 30

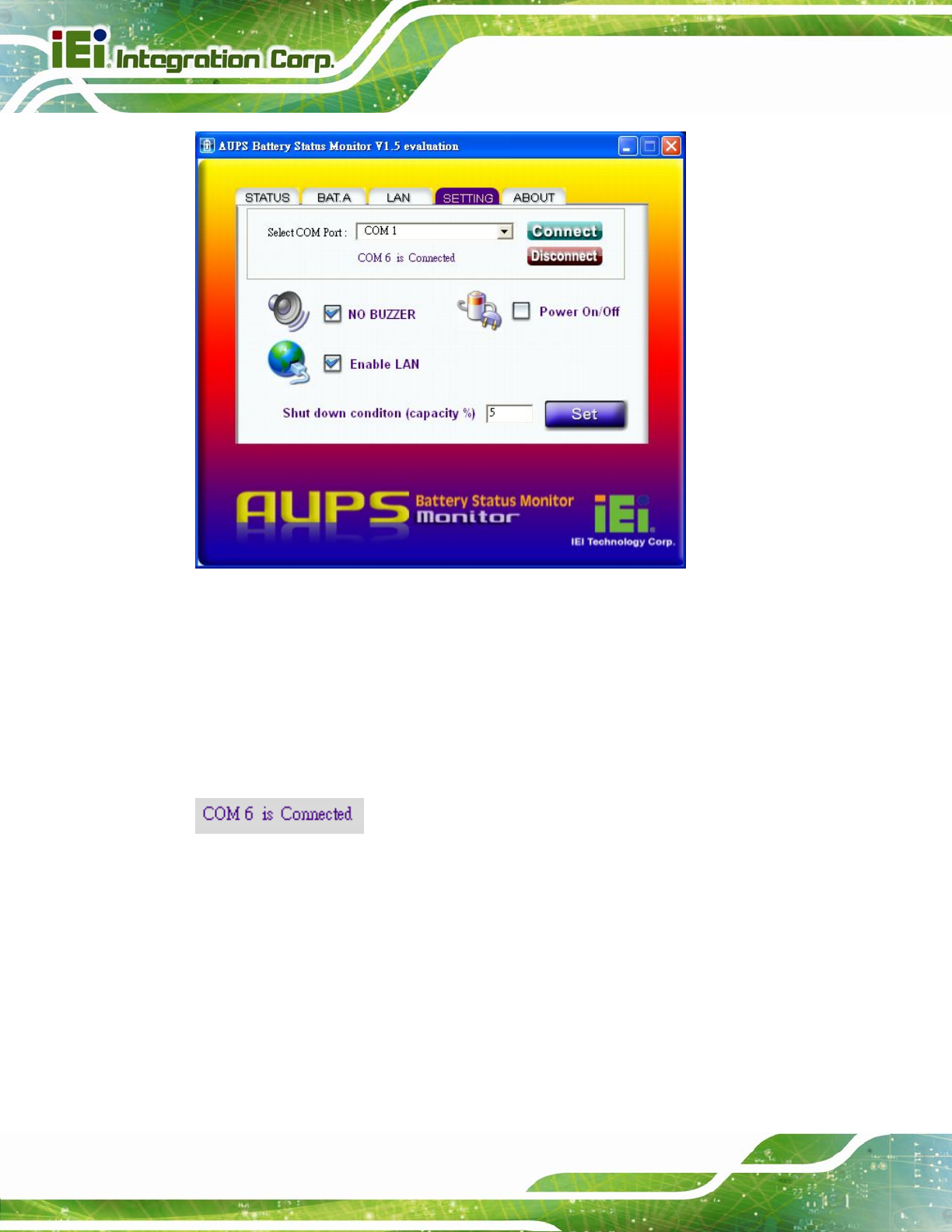

Figure 4-14: Application Setting
When the AUPS Battery Status Monitor application starts up, it automatically scans all
COM port (COM1–COM16) and shows the valid COM port.
Figure 4-15 shows the AUPS
application is communicating with AUPS Series through COM 6. To change the serial port
to communicate, select a proper port number from the list and click Connect. Before
changing, please make sure the selected serial port is not used by other devices.
Figure 4-15: COM Port Status
