Manual

AUPS Series Power Module User Manual
Page 27

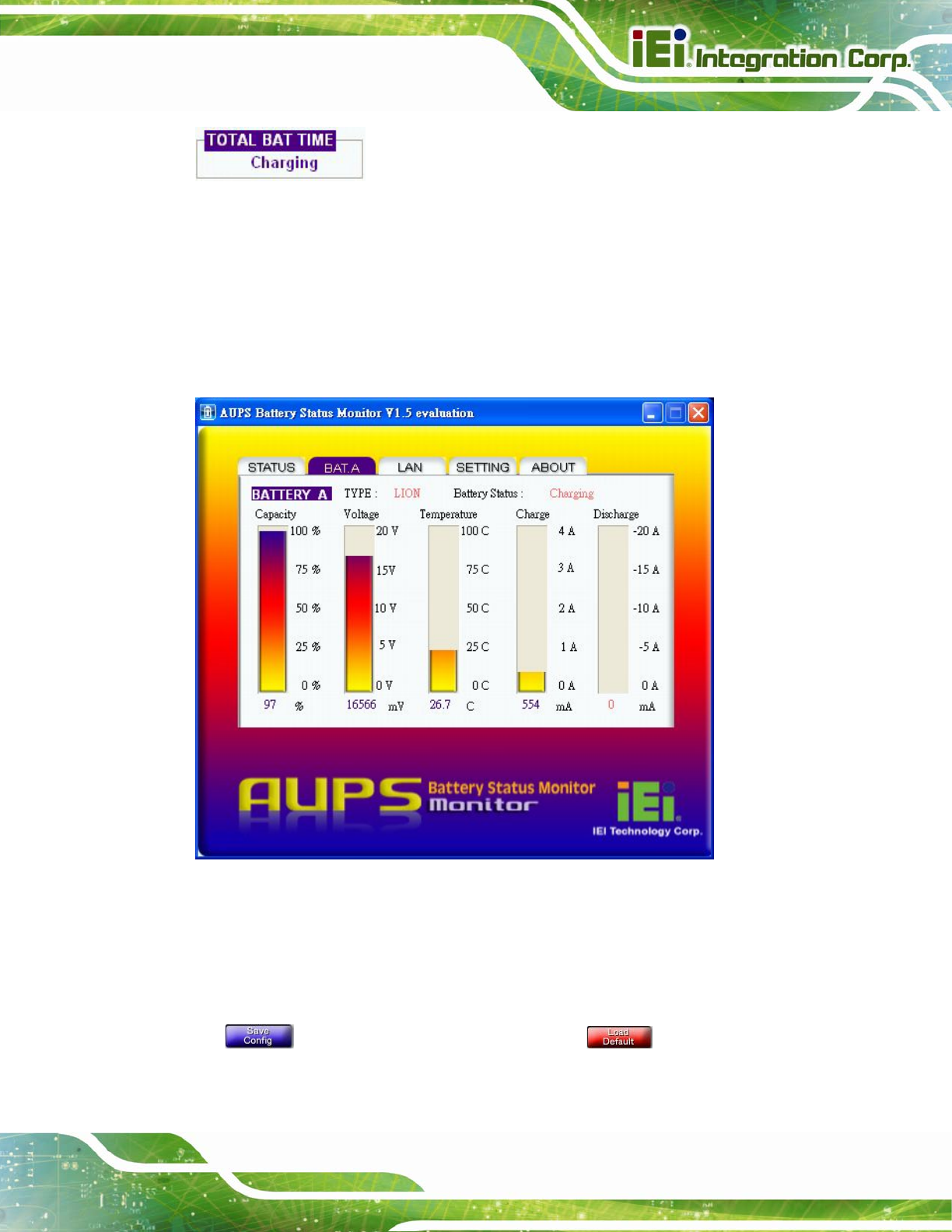

Figure 4-10: Total Battery Time
4.2.3 Battery Information
Click on the BAT. A tab to view the information of battery. The listed information includes
battery type, capacity, output voltage, temperature, charging rate, discharging rate and
battery status (
Figure 4-11). The values listed are updated per second.
Figure 4-11: Battery Information
4.2.4 LAN Setting
The LAN Setting page is where to configure the Remote LAN settings for power on/off
remote control and battery monitoring. To save the modified parameters of this page, click
the
button. To load the default settings, click button.
