AUPS Series Power Module User Manual
Page 17
 Anti-static Discharge: If a user open the top cover of the power module, to
configure the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
3.3 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the UPS module
Step 2: Install the battery pack
Step 3: Mount UPS module to the AFOLUX panel PC
Step 4: Connect the UPS module to the AFOLUX panel PC Step 0:
3.4 Battery Pack Installation
The battery pack must be installed to enable the UPS module. To install the battery pack,
follow the steps below.
Step 1: Remove the four top cover retention screws (
Figure 3-1 and Figure 3-2) and lift
the top cover off the AUPS Series module.

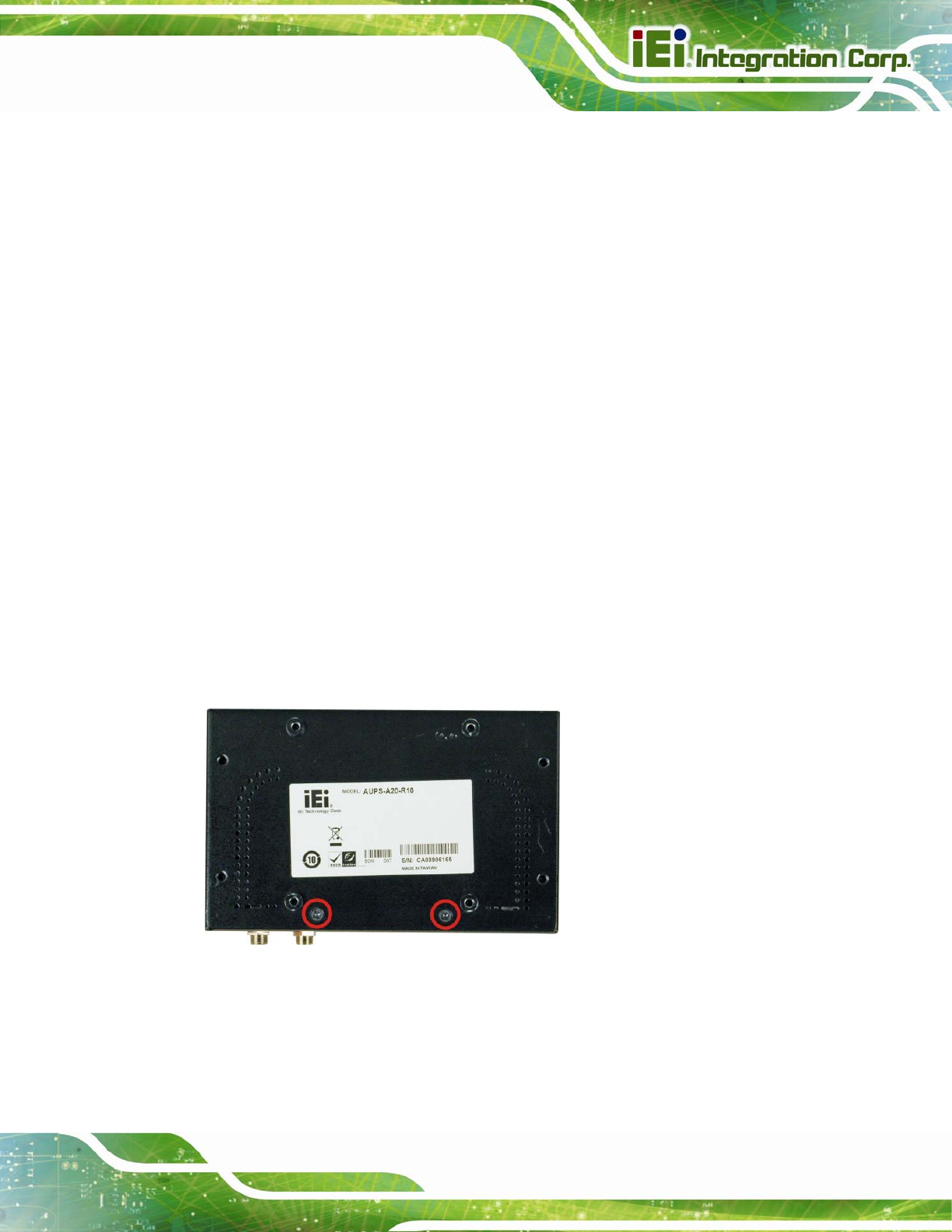

Figure 3-1: Top Cover Retention Screws (Rear Panel)
