AUPS Series Power Module User Manual
Page 6
1.3.2 LED Indicators
The side panel of the AUPS Series has three LED indicators to indicate the power and
battery status (
Figure 1-7).

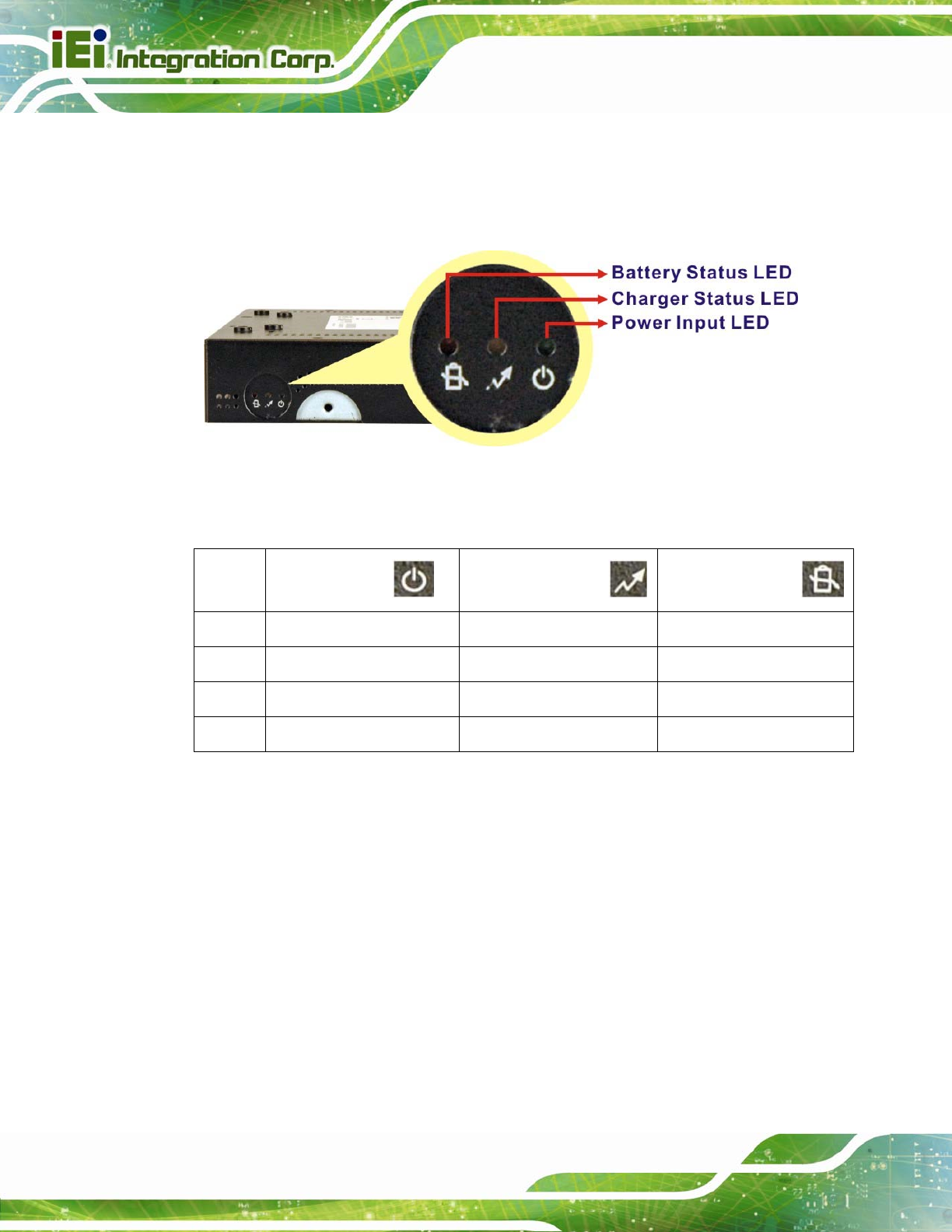

Figure 1-7: AUPS Series LED Indicators
All the LED statuses are listed in
Table 1-1.
Power Input LED
Charger Status LED
Battery Status LED
Color
Green Yellow Orange
Off
DC power out -- --
On
DC power in Discharging (battery full) Battery discharging
Blinking
-- Charging Battery low
Table 1-1: LED Indicators
