AFL2-12A-D525 Series Panel PC
Page 71

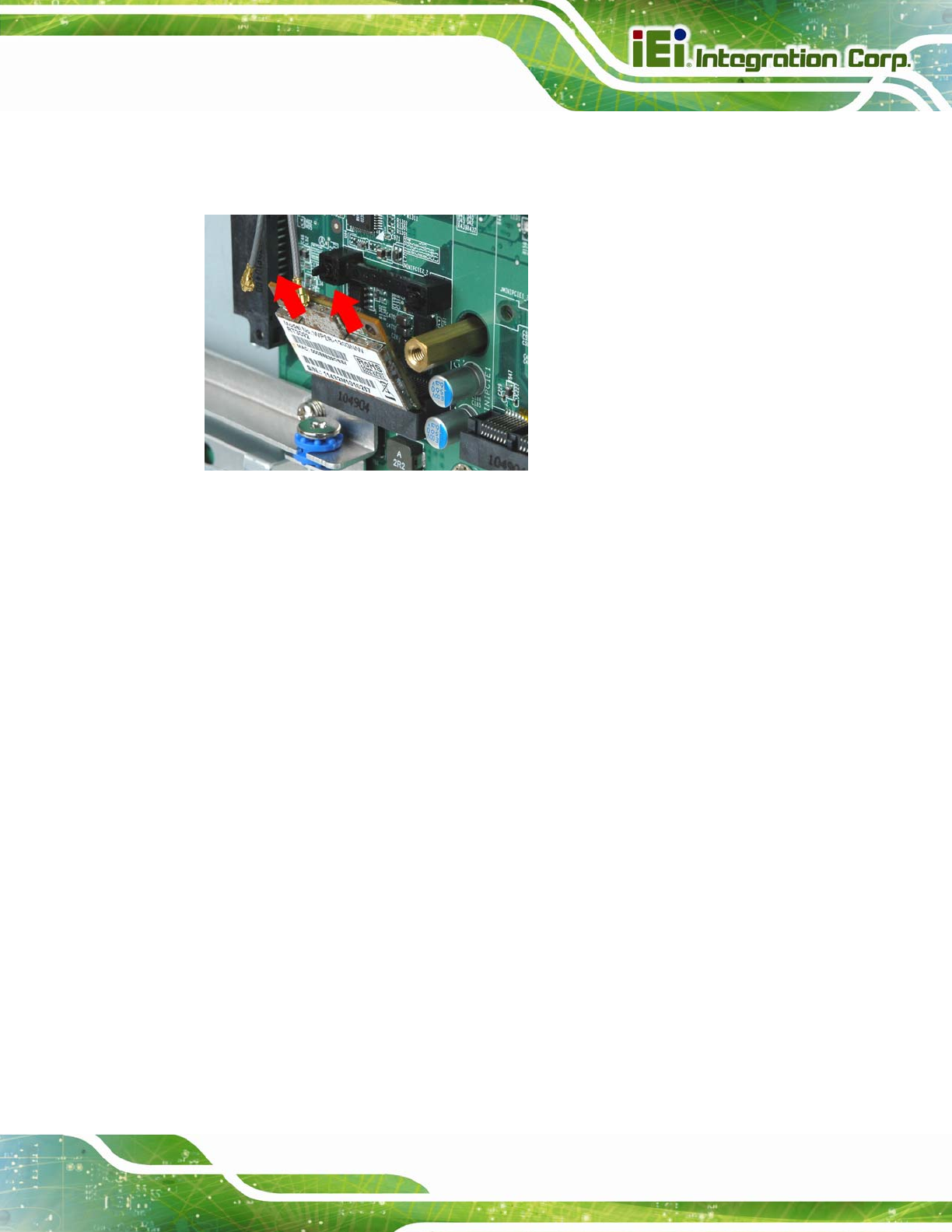

Step 8: Grasp the WLAN card by the edges and carefully pull it out of the socket
(
Figureٛ 5-6).
Figure
ٛ 5-6: Removing the WLAN card
Step 9: Install a new WLAN card by inserting the card into the slot at an angle
Step 10: Push the WLAN card down until the spring retainer clips lock into place.
