AFL2-12A-D525 Series Panel PC
Page 67

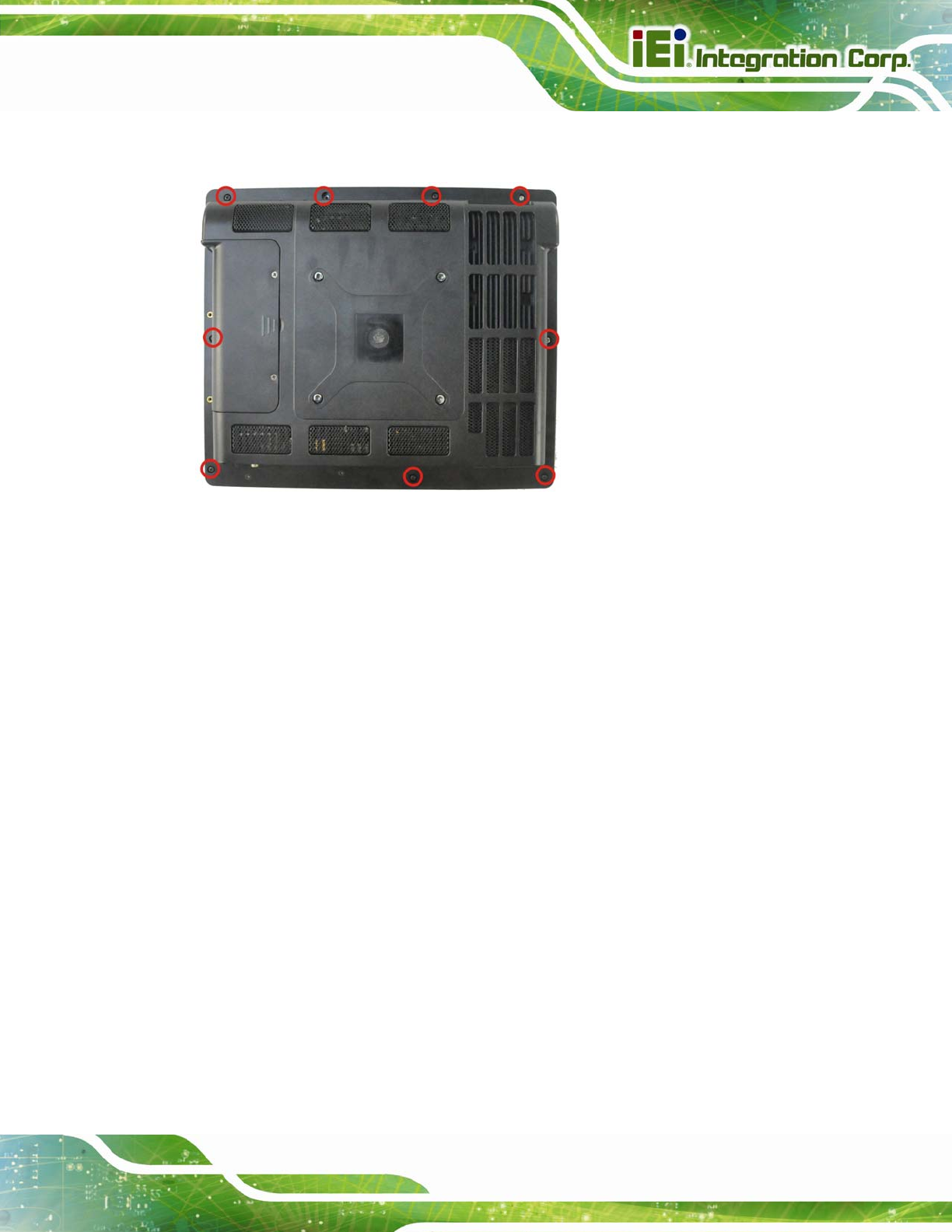

Step 3: Remove a total of nine (9) retention screws from the back cover (Figure 5-1).
Figure 5-1: Back Cover Retention Screws
Step 4: Carefully separate the back cover from the chassis and lift the cover clear of the
device Step 0:
5.4.2 Removing the Internal Aluminum Cover
To remove the internal aluminum cover, follow the steps below.
Step 1: Remove the six (6) retention screws securing the internal aluminum cover to the
chassis (Figure 5-2).
