AFL2-12A-D525 Series Panel PC
Page 55

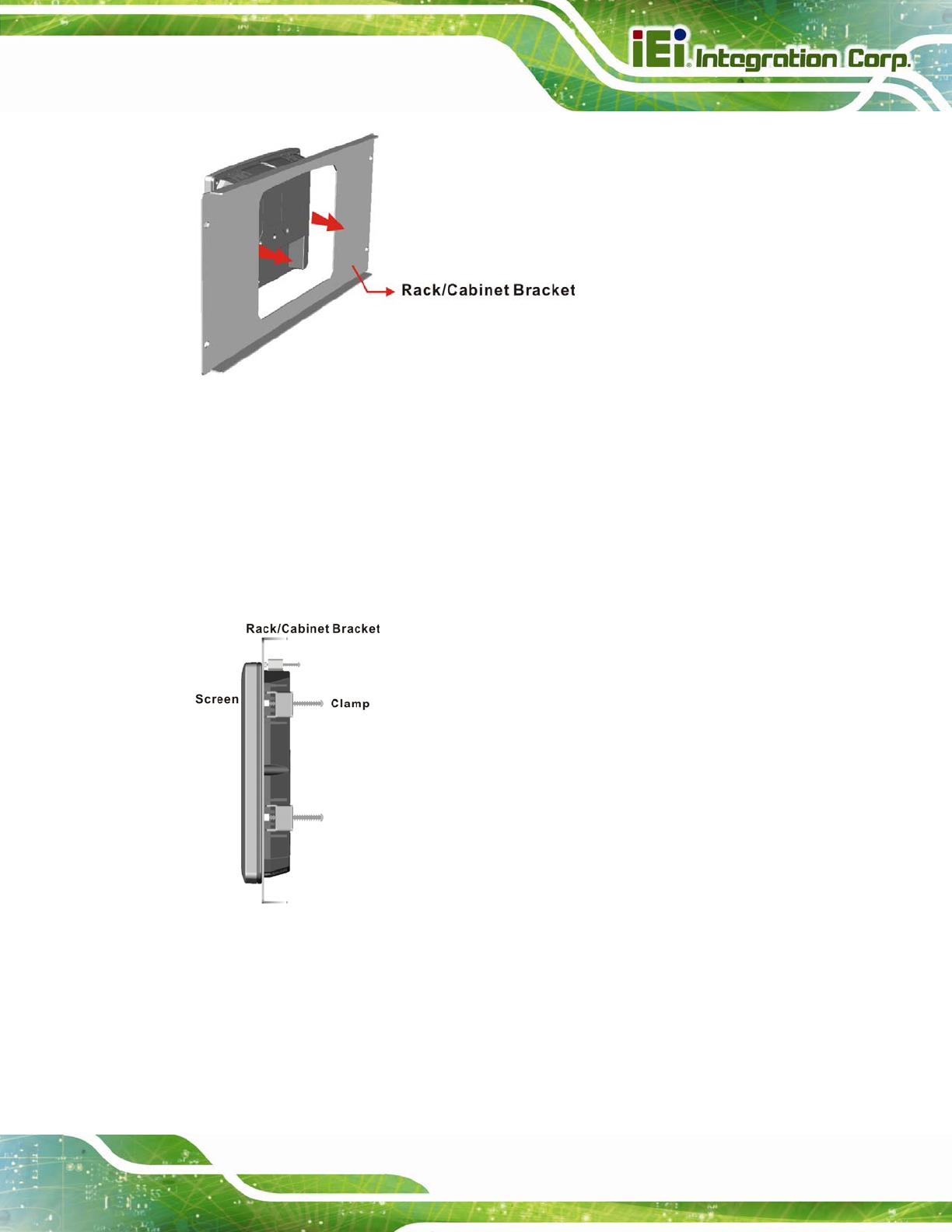

Figure 4-15: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the flat bezel panel PC, behind the ABS/PC plastic frame. There are a total of 6
rack mounting clamps.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket (
Figure 4-16).
Figure 4-16: Secure the Rack/Cabinet Bracket
