AFL2-12A-D525 Series Panel PC
Page 52

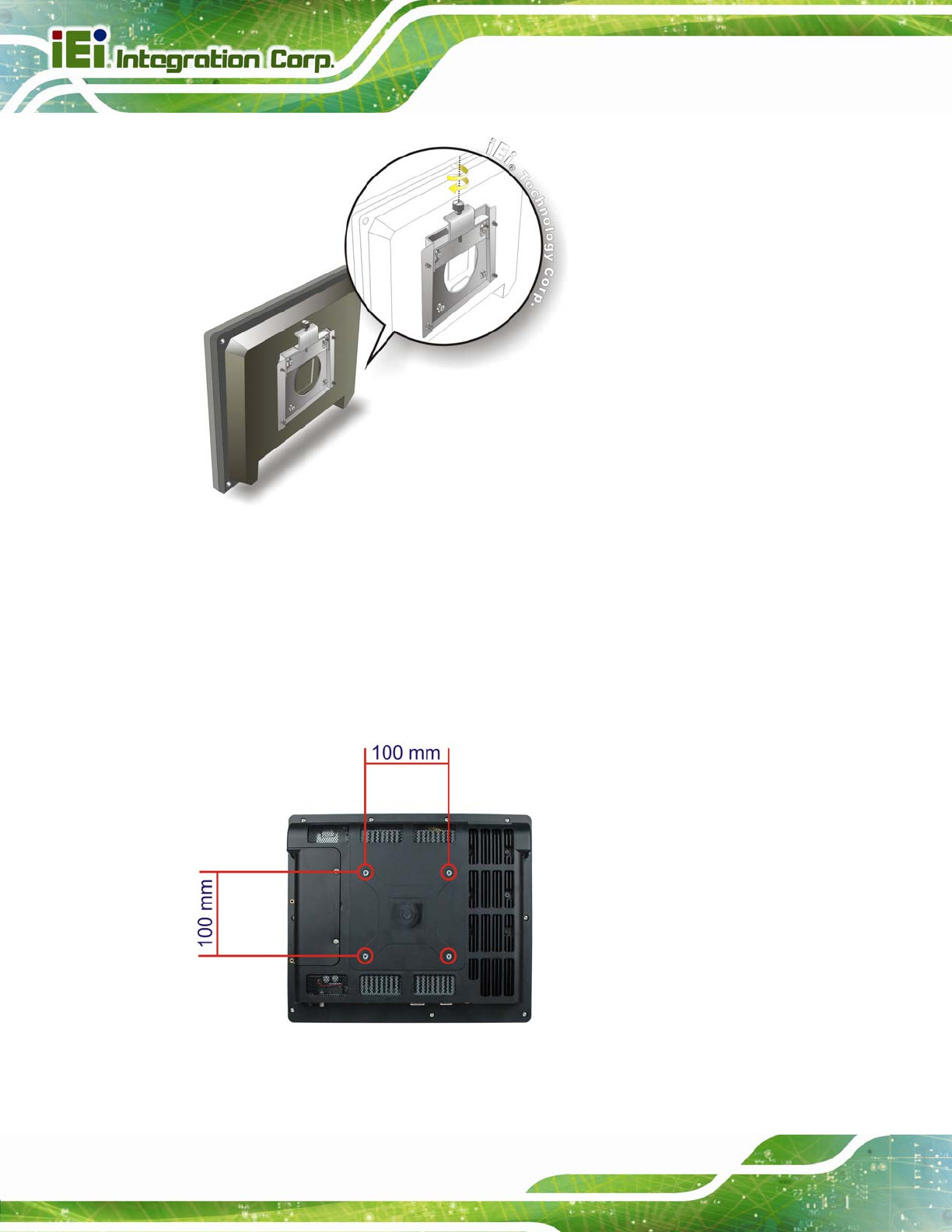

Figure 4-12: Secure the Panel PC
4.9.2 Stand Mounting
To mount the AFL2-12A-D525 using the stand mounting kit, please follow the steps below.
Step 1: Locate the screw holes on the rear of the AFL2-12A-D525. This is where the
bracket will be attached. (
Figure 4-13)
Figure 4-13: Mounting screw location
Step 2: Align the bracket with the screw holes.
