AFL2-12A-D525 Series Panel PC
Page 45

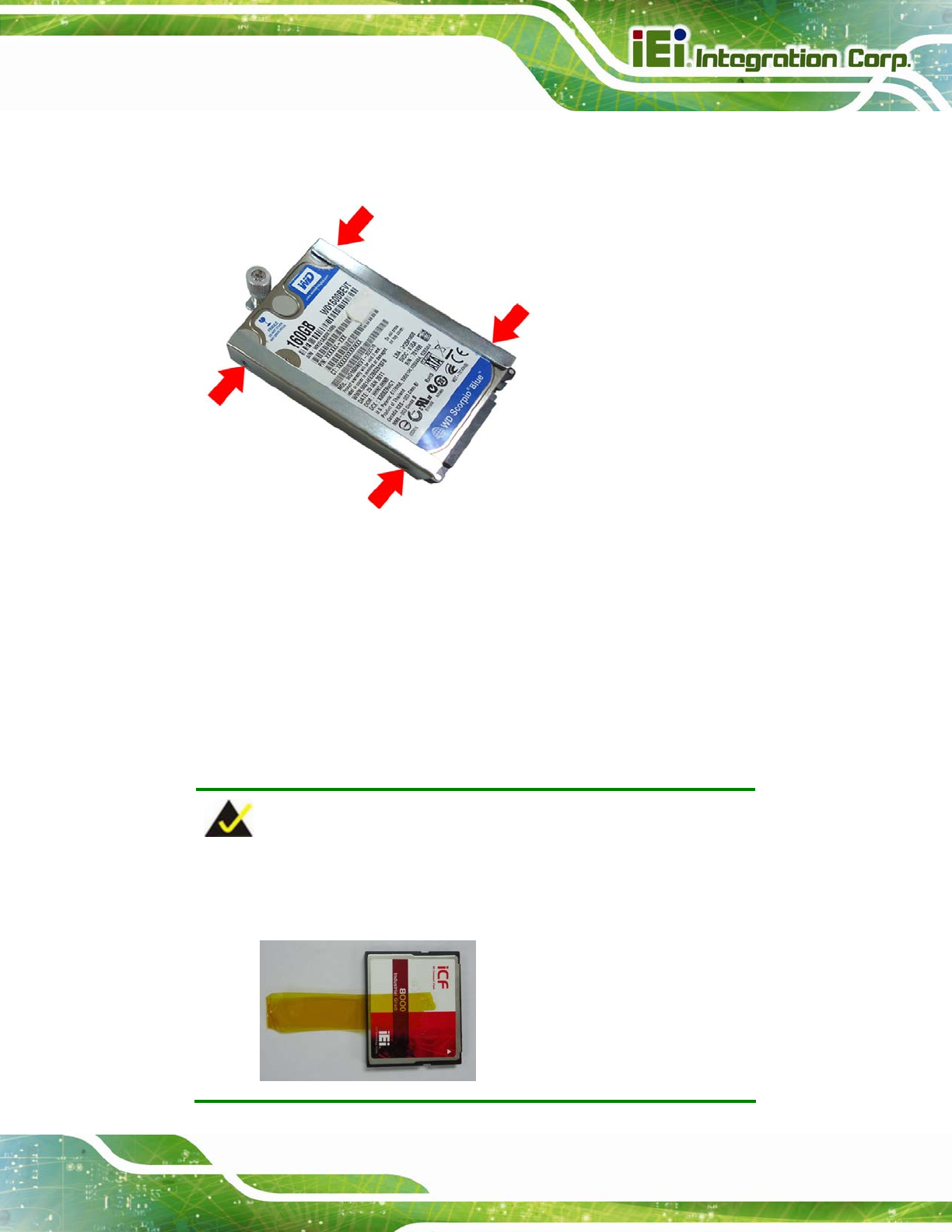

Step 6: Secure the HDD to the bracket using four (4) retention screws (two screws on
each side) (
Figureٛ 4-5).
Figure
ٛ 4-5: Securing the HDD
Step 7: Slide the HDD module back into the device.
Step 8: Tighten the captive screw.
Step 9: Replace the HDD cover and secure it using two (2) retention screws. Step 0:
4.5 CF Card Installation
To install a CF Card into the AFL2-12A-D525, please follow the steps below:
NOTE:
Before installation, it is recommended that a piece of tape be applied to
the CF card to aid in removal. See below:
