AFL2-12A-D525 Series Panel PC
Page 24

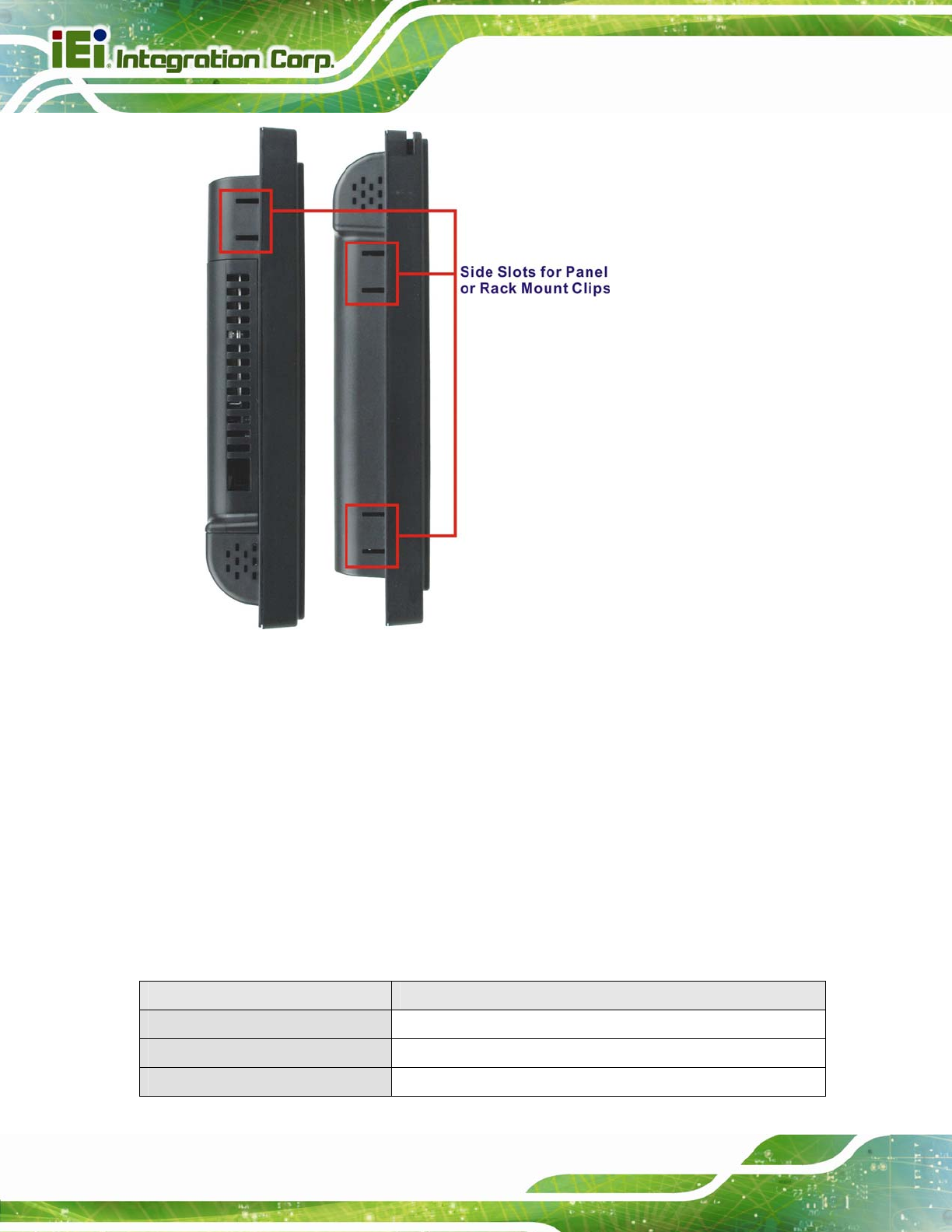

Figure 1-8: Side Panel Views
1.3 Internal Overview
The AFL2-12A-D525 has the following components installed internally:
1 x Motherboard
1 x 1.0 GB 800 MHz DDR3 SO-DIMM
1.4 System Specifications
The technical specifications for the AFL2-12A-D525 systems are listed in
Table 1-4.
Specification AFL2-12A-D525
LCD Size 12.1”
Max. Resolution 1024 (W) x 768 (H)
Brightness (cd/m
2
) 600
