AFL2-12A-D525 Series Panel PC
Page 23

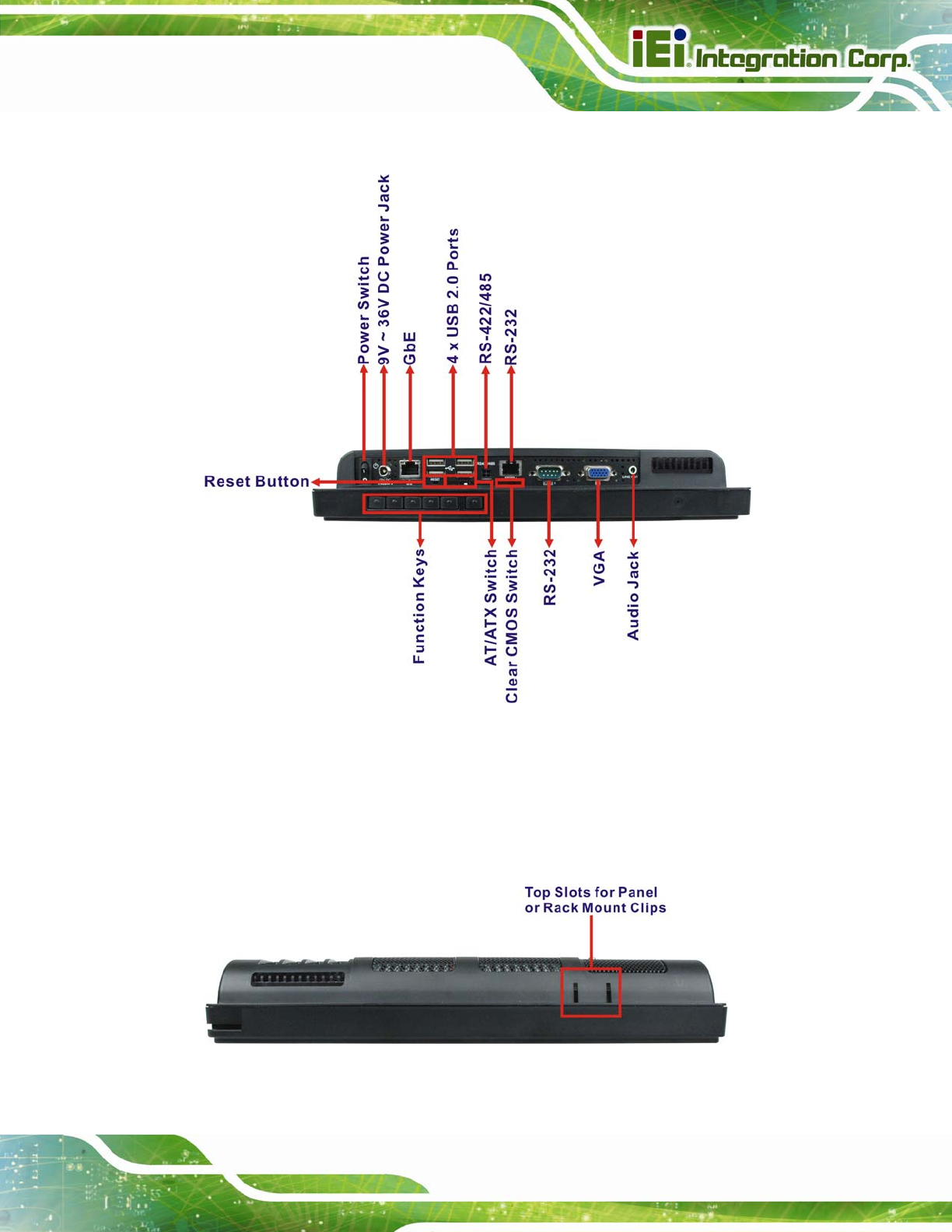

The external I/O interface connector panel is shown in Figure 1-6.
Figure 1-6: AFL2-12A-D525 I/O Interface Panel
1.2.4 Top Panel and Side Panels
The top panel and side panels of AFL2-12A-D525 provide access to slots that support the
panel mount and rack mount (
Figure 1-7).
Figure 1-7: Top Panel View
