AFL2-12A-D525 Series Panel PC
Page 152

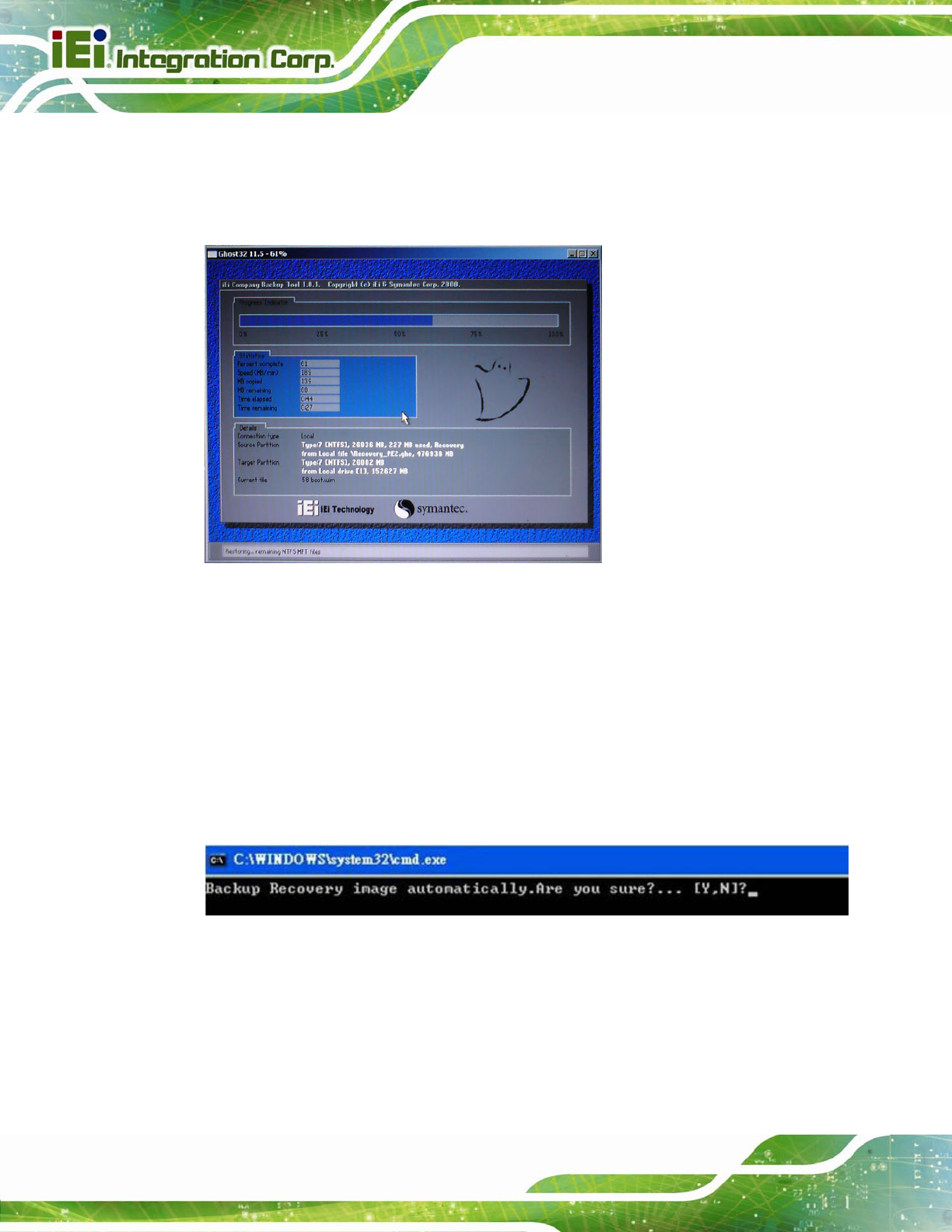

Step 5: The Symantec Ghost window appears and starts configuring the system to build
an auto recovery partition. In this process the partition created for recovery files
in Section
C.2.2 is hidden and the auto recovery tool is saved in this partition.
Figure C-25: Building the Auto Recovery Partition
Step 6: After completing the system configuration, the following message prompts to
confirm whether to create a factory default image. Type Y to have the system
create a factory default image automatically. Type N within 6 seconds to skip this
process (The default option is YES). It is suggested to choose YES for this
option.
Figure C-26: Factory Default Image Confirmation
